Duplex Bearings

Name: Duplex Bearings
Brand: IEC
SKU: 14505
Availability: InStock
Rating: 5 (1 reviews)

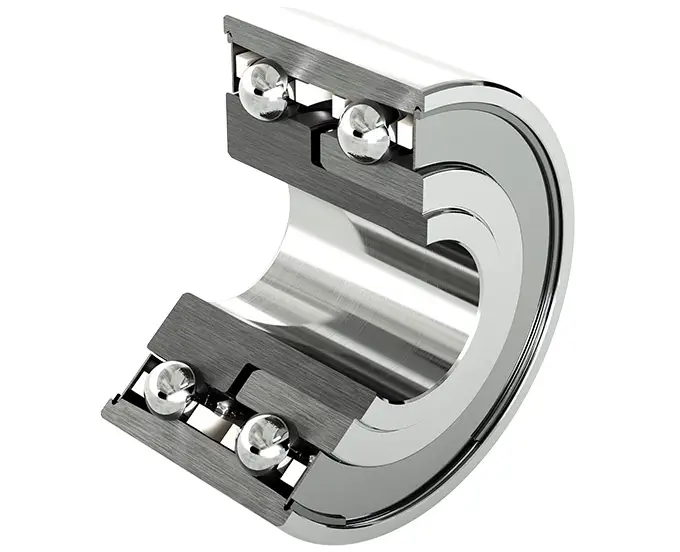

Duplex Bearings are matched bearings that provide accurate alignment in radial and axial directions. These bearings are designed to eliminate vibration and offer a higher load capacity, leading to longer life and increased system reliability. Duplex bearings are matched by loading every single bearing with the desired preload, measuring the axial offset, and grinding the relevant ring face. When assembled as a set, these bearings create a precise sub-assembly with a known preload, offering increased load capacity, a stiffer assembly, and optimised life.

INNOVATIVE AND RESILIENT BALL BEARINGS

Are you in need of a bearing solution capable of handling large loads while ensuring precise orientation? At IEC, we supply GRW duplex ball bearings that meet these exacting standards, suitable for a variety of industries. The advantages of paired bearings include:

SPECIAL BEARINGS FOR SPECIAL PURPOSES

Typically, our radial deep-groove ball bearings are paired with a preload of 5 Newtons and a nominal contact angle of 15° (E). We can adjust the preload and contact angle to meet your specific requirements. We generally recommend higher radial clearance for duplex bearings, as this enhances axial load capacity, rigidity, and the contact angle.

For spindle ball bearings, we offer variants with contact angles of either 15° (C) or 25° (E). Our duplex bearings are available in three preload stages:

We can also make individual adjustments to suit the demands of your particular application.

KEY CONSIDERATIONS FOR HANDLING DUPLEX BEARINGS

We advise against increasing preload beyond the necessary level, as this can raise frictional torque and reduce bearing life. We classify duplex bearings into two groups based on their bore type and outer diameter. The matched pairs are then packaged and marked with the same code to ensure compatibility. During installation, it’s important to select your shafts and housings carefully. Exceeding the maximum fit interference on the inner or outer ring can alter the preload. Specific instructions are provided on the packaging stickers and bearing labels.

DIFFERENT DUPLEX BEARING ARRANGEMENTS

“O” Arrangement (Back-to-back, Type -1 or DB for spindle bearings)
“X” Arrangement (Face-to-face, Type -2 or DF for spindle bearings)
Tandem Arrangement (Type -3 or DT for spindle bearings)
Universal Arrangement (Type -4 or U for spindle bearings)

If your application requires exceptionally high rigidity, IEC also offers customised bearing sets. Depending on your needs, we can combine universally paired bearings in X, O, or tandem arrangements to deliver the precise performance you require.

Utilise our customised Bearing Selector tool here.
