Fey Laminar Seal Rings

With origins dating back more than 75 years, IEC’s partnership with Fey Lamellenringe provides the UK market with an exclusive range of metallic laminar seal rings that provide low contact seals with outstanding sealing characteristics for rotating components.

Fey Labyrinth Sealing Rings

Protect vulnerable seals and bearings

Fey labyrinth sealing rings are used as sealing elements for both rotating and static applications. Fey sealing rings utilise a low contact multiple labyrinth with very little gap width. This special design produces little friction reducing internal heat and wear as well as providing outstanding sealing characteristics.

See the full Fey laminar rings catalogue.

Markets

IEC have a range of mechanical solutions to suit a broad spectrum of markets and applications, from aerospace to skateboards.

Markets

IEC have a range of mechanical solutions to suit a broad spectrum of markets and applications, from aerospace to skateboards.

Markets

Molestie nunc non blandit massa. Iaculis nunc sed augue lacus. Malesuada nunc vel risus commodo. Dui id ornare arcu odio ut sem nulla pharetra.

Engineering in motion

We act as partners, making our customers’ engineering challenges ours to solve, removing stress and freeing up time to turn ideas in to innovation.

Product:

Laminar seal rings

Application:

Turbo engine shaft sealing

Challenge:

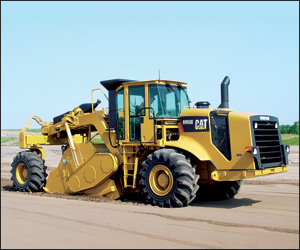

Bearing and equipment damage can occur due to high operating temperatures and or particulate ingress, particularly in harsh working environments such as experienced by off-highway vehicles.

Solution:

IECs technical team worked closely with the client’s engineering team and manufacturing partners to provide custom-designed metallic sealing solutions to prevent contamination ingress and deliver a low friction solution for high-speed turbo engines, extending equipment life and service intervals.

Product:

Disc Springs and Laminar Seal Rings

Application:

Supersonic car

Challenge:

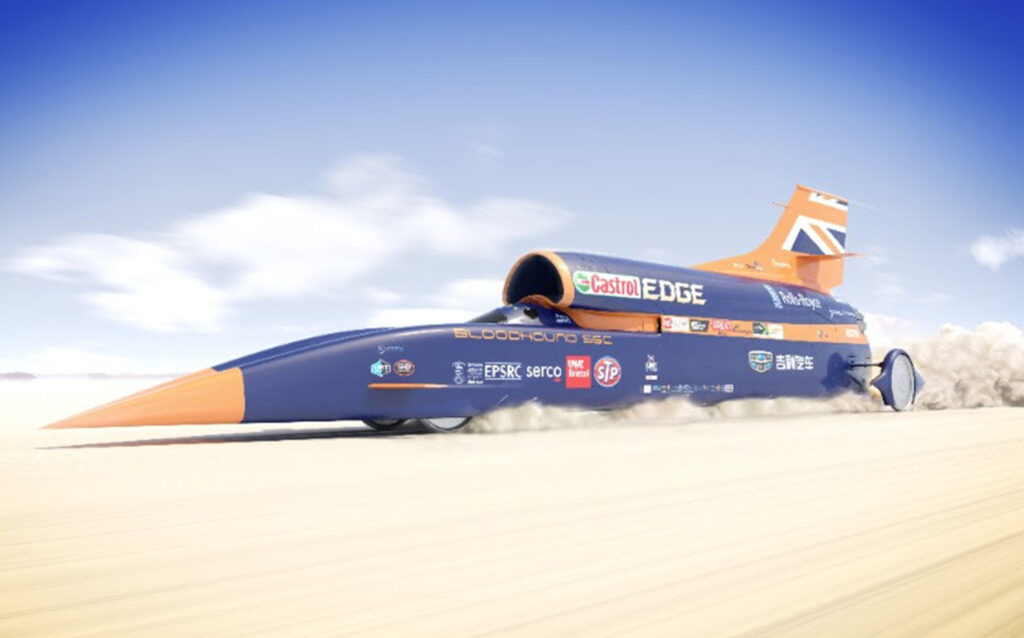

Bloodhound LSR is a UK-based project aiming to break the world land speed record using the most advanced straight-line racing car ever built. Designed to travel at supersonic speeds, our safety washers are employed throughout the vehicle, and our lock nuts were employed in two critical systems.

Solution:

Within the gearbox of the Jaguar supercharged V-8 auxiliary power unit that would drive the oxidiser pump for the three Eurofighter jet engines. Additionally, IEC’s lock nuts were used to secure the rear wheels in position as they spun up to 10,200 rpm, resist centrifugal forces of up to 50,000 Kg.

Download technical documents and brochures.

Keep up to date with the latest product and technical information from IEC and its international supply partners.

Related Laminar Seal Rings Products
