Schnorr Safety Washer Type VS M10 BLACKED

Name: Schnorr Safety Washer Type VS M10 BLACKED
Brand: IEC
SKU: 16885
Availability: InStock
Rating: 5 (1 reviews)

Article Number: 423100

Key Features:

High resistance to vibration due to positive locking of the serrations.
The design of the serrations prevents friction and damage to components when tightening.
Extremely high safety against loss of pretension force and loosening.

Product Type

Type VS

Material

1.1211/C60S

Surface

BLACKED

Nominal Size (mm)

10 mm

Bolt Grade

8.8-10.9

Get Your Order Shipped within 72 hours

Your Official Distributor for Schnorr Products in the UK

Product Code / Article Number 423100

423100

Nominal Size 10

10 mm

Type Type VS

Type VS

Material 1.1211/C60S

1.1211/C60S

Surface BLACKED

BLACKED

Bolt Grade 8.8-10.9

8.8-10.9 mm

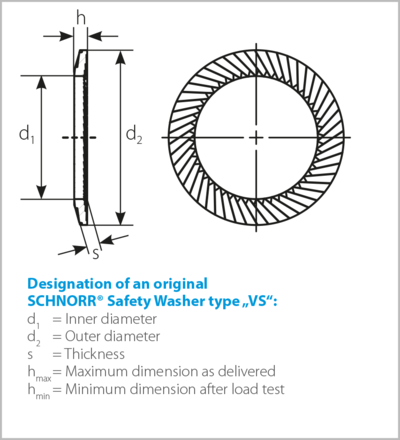

Thickness (S) 1.40

1.40 mm

Diameter (D1) 10.50

10.50 mm

Diameter (D2) 16.00

16.00 mm

hmin (Minimum dimension after load test) 1.50

1.50 mm

hmax (Maximum dimension as delivered) 2.00

2.00 mm

Finish Natural

Natural

Metric or Imperial? Metric

Metric

See a problem with this specification? Let us know.
