ABIS: Precision Bearings by IEC

Our ABIS range covers miniature precision bearings manufactured with ABEC 1 to ABEC 5 tolerances, with bore dimensions ranging from 0.6mm to 90mm. These high-quality bearings are essential for applications requiring extreme accuracy and reliability.

ABIS Precision Bearings: Delivered with IEC Expertise

For more than 85 years, IEC has built a reputation as a trusted partner in sourcing and distributing high-quality components.

All ABIS miniature precision bearings are produced by well-established partners specialising in the manufacture of precision ball bearings and are approved to ISO 9001 standards. This ensures that each bearing meets stringent quality requirements, making them suitable for a wide range of high-precision applications. The ABIS range includes metric and imperial sizes, open, shielded, and sealed variants, as well as options with or without flanges.

With materials ranging from high carbon chrome to stainless steel, and configurations like full complement and ceramic ball options, ABIS bearings are built for versatility and durability across a variety of sectors. Every ABIS product reflects the company’s commitment to quality and performance, and IEC ensures these high standards are maintained for UK customers.

A Legacy of Excellence and Innovation

IEC has been supporting ball bearing applications in many different industries since 1938. Our extensive experience and expertise in the field enables us to provide solutions tailored to the specific needs of our customers. We maintain a large stock of ABIS miniature precision bearings and bearing accessories at our Poole premises, ensuring quick availability and prompt delivery.

Benefits of ABIS Precision Bearings

High Precision: ABIS bearings are manufactured to tight tolerances, delivering outstanding accuracy, optimal performance, and reliability in even the most demanding environments.
Versatility: With an extensive range of configurations, ABIS bearings are suited for applications across numerous industries, including medical and dental, robotics, and industrial machinery.
Exceptional Durability: ABIS bearings are made from high quality materials and rigorously tested, ensuring long-lasting performance that reduces downtime and enhances productivity.

Your Trusted UK Source for ABIS Bearings

With our commitment to quality, customer satisfaction, and decades of expertise, we are well-positioned to provide you with the precision-engineered solutions your business needs.

Miniature precision bearings are available in a variety of configurations to meet diverse application needs, including:

Metric and imperial sizes.
Open, shielded, and sealed.
With and without flange.
High carbon chrome and stainless steel.
Full complement: Bearings without a cage, providing maximum load capacity.
Ceramic balls: Offering reduced weight, increased speed, and lower friction.

Rolling element bearings consist of ball, roller or needle elements located between two metal rings which are then free to rotate relative to each other. They offer advantages over plain bushes without the higher costs of more sophisticated fluid bearings.

Ball bearings benefit over plain bearings in terms of torque levels, rotational accuracy and speed capability. In their standard form they can support both radial and axial loads.

ABIS Catalogue

ABIS Miniature Precision Bearings

Our ABIS range covers miniature precision bearings manufactured to ABEC 1 to ABEC 5 tolerances, with bore dimensions ranging from 0.6mm to 90mm. These high-quality bearings are essential for applications requiring extreme accuracy and reliability.

Miniature precision bearings are available in a variety of configurations to meet diverse application needs, including:

Metric and imperial sizes: Ensuring compatibility with different measurement standards.
Open, shielded, and sealed: Providing options for different levels of protection and lubrication.
With and without flange: Offering flexibility in mounting and stability.
High carbon chrome and stainless steel: Materials chosen for durability and resistance to corrosion.
Full complement: Bearings without a cage, providing maximum load capacity.
Ceramic balls: Offering reduced weight, increased speed, and lower friction.

IEC has been closely involved with ball bearing applications in many different industries since 1938. Our extensive experience and expertise in the field enable us to provide solutions tailored to the specific needs of our customers. We maintain a large stock of ABIS miniature precision bearings and bearing accessories at our Poole premises, ensuring quick availability and prompt delivery.

ABIS Miniature Precision Bearings

High Precision: Manufactured to tight tolerances for optimal performance.
Durability: Made from high-quality materials for long service life.
Versatility: Suitable for various applications, including medical and dental, robotics, aerospace components and more.
Reliability: Consistent performance in demanding environments.

For more information on our range of miniature precision bearings, or to discuss your specific requirements, please contact IEC. Our team of experts is ready to assist you in finding the perfect bearing solution for your application.

Available Ball Bearings

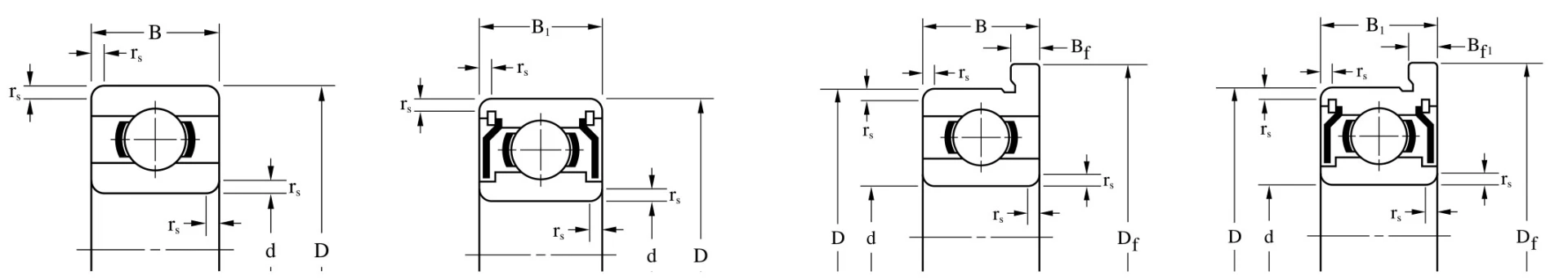

Open Ball Bearings	Shielded Ball Bearings	Sealed Ball Bearings

Bearing Series	Open	Flange Open	Flange Shield	Seal 2RS
Metric series
Inch series
Extra thin metric series 6700/6800/6900
Large sized stainless steel series 6000H/6200H/6300H
Extra thin ET Series-metric
Extra thin ER Series-Inch
Thrust series	FM with raceway	FM with raceway	F without raceway	F without raceway

Bearing Series	Open	Flange Open	Shield	Flange Shield	Seal 2RS	Seal 2RU	Seal TTS
Metric series
Inch series
Extra thin metric series6700/6800/6900
Large sized stainless steel series 6000H/6200H/6300H
Extra thin metric series ET/ER
Thrust series	FM with raceway			F without raceway

Available Ball Bearings

Open Ball Bearings	Shielded Ball Bearings	Sealed Ball Bearings

Bearing Series	Open	Flange Open	Flange Shield	Seal 2RS
Metric series
Inch series
Extra thin metric series 6700/6800/6900
Large sized stainless steel series 6000H/6200H/6300H
Extra thin ET Series-metric
Extra thin ER Series-Inch
Thrust series	FM with raceway	FM with raceway	F without raceway	F without raceway

Bearing Series	Open	Flange Open	Shield	Flange Shield	Seal 2RS	Seal 2RU	Seal TTS
Metric series
Inch series
Extra thin metric series6700/6800/6900
Large sized stainless steel series 6000H/6200H/6300H
Extra thin metric series ET/ER
Thrust series	FM with raceway			F without raceway

ACCESSORIES - Shaft Retaining Rings

Reference	Dimensions (mm)
	Shaft	Retaining Ring			Groove
	d1Ø	d3 max.	b+0.10	s+0.02	d2+0.05	m+0.03
WSR3	3	2.60	0.50	0.30	2.70	0.33
WSR4	4	3.60	0.50	0.30	3.70	0.33
WSR5	5	4.50	0.70	0.40	4.60	0.44
WSR6	6	5.45	0.70	0.40	5.60	0.44
WSR7	7	6.45	0.70	0.40	6.60	0.44
WSR8	8	7.35	0.90	0.50	7.50	0.55
WSR9	9	8.30	0.90	0.50	8.50	0.55
WSR10	10	9.25	0.90	0.50	9.50	0.55

Material: Spring Steel 1.4310/AISI 301

ACCESSORIES - shaft retaining rings

Reference	Dimensions (mm)
	Bore	Retaining Ring			Groove
	d1Ø	d3 max.	b+0.10	s+0.02	d2+0.05	m+0.03
BSR4	4	4.40	0.50	0.30	4.30	0.33
BSR5	5	5.45	0.50	0.30	5.30	0.33
BSR6	6	6.45	0.50	0.30	6.30	0.33
BSR7	7	7.50	0.50	0.30	7.30	0.33
BSR8	8	8.60	0.70	0.40	8.40	0.44
BSR9	9	9.60	0.70	0.40	9.40	0.44
BSR10	10	10.65	0.70	0.40	10.40	0.44
BSR11	11	11.65	0.70	0.40	11.40	0.44
BSR12	12	12.75	0.90	0.50	12.50	0.55
BSR13	13	13.75	0.90	0.50	13.50	0.55
BSR14	14	14.80	0.90	0.50	14.50	0.55
BSR15	15	15.80	0.90	0.50	15.50	0.55
BSR16	16	16.85	0.90	0.50	16.50	0.55
BSR17	17	17.85	0.90	0.50	17.50	0.55
BSR19	19	20.00	1.10	0.60	19.60	0.66

Material: Spring Steel 1.4310/AISI 301

ACCESSORIES - shims and spring washers

Dimensions (mm)					Used for
Shims		Spring Washers			Used for
d x D Reference	S1	d x D Reference	H	S	On Shaft	On Housing
AS1.55×2.50	0.15 – –	– WF1.60×2.90 WF1.90×2.80	– 0.40 0.50	– 0.06 0.08	68/1.5; 69/1.5	–
AS2.00×4.30	0.10 0.16 0.20	–	–	–	–	–
AS2.25×3.20	0.08 0.10	WF2.15×3.10	0.50	0.08	682; 692; 5/64	1016
AS2.80×3.90	0.08 0.10	WF2.70×3.80	0.50	0.08	60/2.2; 68/2.5; 69/2.5; 3/32	68/1.5; 691; 1191
AS3.05×4.50	0.10 0.16 0.20	–	–	–	–	–
AS3.30×4.40	0.08 0.10 0.12	WF3.20×4.30	0.50	0.10	623; 683; 693; 1/8A; 1/8B; 3175; 1/8A/6; 1/8B/083	–
AS3.50×5.00	0.08	–	–	–	–	–
AS3.80×4.90	0.08 0.10 0.12	WF3.70×4.80	0.55	0.10	–	682; 69/1.5
AS4.05×5.50	0.10 0.20	–	–	–	–	–
AS4.30×5.85	0.10 0.12 0.15	WF4.20×5.75	0.65	0.12	604; 624; 634; 684; 694; 3967	68/2.5; 692
AS4.90×6.20	0.10 0.12 0.15	WF4.80×6.10	0.60	0.12	3/16; 4763A; 4763B	5/64; 3175
AS5.20×6.75	0.15	–	–	–	–	–
AS5.30×6.85	0.10 0.12 0.15	WF5.20×6.75	0.65	0.12	625; 635; 685; 695	683; 69/2.5
AS5.50×6.75	0.15	–	–	–	–	–
AS6.30×7.85	0.12 0.15 0.18	WF6.20×7.75	0.70	0.15	626; 686; 696	60/25; 693; 3/32; 1/BA; 3967; 4763A
AS6.70×9.40	0.10	–	–	–	–	–
AS7.30×8.80	0.12 0.15 0.18	WF7.20×8.70	0.90	0.15	607; 627; 687; 697	684
		WF7.20X12.00	1.55	0.13	607; 627	63508; 7938; 1/8B/083
AS8.30×9.80	0.10 0.15 0.18 0.20	WF8.20×9.70	0.85	0.18	608; 688; 698; 7938	623
AS9.30×10.80	0.15 0.18 0.20	WF9.20×10.70	1.15	0.18	609; 629; 689; 699	685; 694
AS10.30×11.80	0.18 0.20 0.22	WF10.20×11.70	1.05	0.20	6000; 6800; 6900; 3/8	604
–	–	WF10.50×15.80*	1.85	0.25	6000	625; 634
AS11.30×12.80	0.18 0.20 0.22	WF11.20×12.70	1.30	0.20	–	624; 686; 695
AS12.30×13.80	0.20 0.22 0.25	WF12.20×13.70	1.30	0.22	–	687
AS13.30×14.80	0.20 0.22 0.25	WF13.20×14.70	1.30	0.22	–	696
AS14.35×15.80	0.22 0.25 0.30	WF14.20×15.65	1.55	0.25	–	625; 634; 688; 1/4A
AS15.35×16.80	0.22 0.25 0.30	WF15.20×16.65	1.55	0.25	–	689; 697
AS16.00×22.00	0.10	WF15.80×21.80	1.60	0.20	–	3/8
AS16.40×18.80	0.25 0.30 0.35	WF16.20×18.55	2.15	0.30		607; 626; 635; 6800; 698; ¼

Material: Spring Steel 1.4310/AISI 301

ABIS Preload Springs For ball bearings

Preloading of bearings is a crucial process that involves applying an axial load to either the inner or outer ring of the bearing. This ensures that radial play is taken up, and running components are in consistent contact. Using a bearing preload spring is seen as a best practice as it significantly reduces noise and vibration, ultimately extending the life of the bearing.

There are essentially two methods to preload a bearing. Firstly, a solid preload, such as a threaded plug or circlip. Secondly, by a spring, specifically a disc spring. The disadvantage of a solid preload is that it cannot compensate for tolerance build-up or thermal expansion of the surrounding components, which may affect the running torque.

Bearing preload springs, particularly disc springs, offer a superior solution. The disc spring, by applying a constant load around the bearing ring, overcomes the limitations associated with solid preloads. In applications where a very light preload is required, the disc spring can be designed with radial slots to reduce the axial force applied.

IEC provides a comprehensive range of bearing preload springs from ABIS, designed to meet various application requirements. Our springs ensure consistent performance and reliability by maintaining optimal contact and load distribution in ball bearings.

Benefits of ABIS Bearing Preload Springs

Noise Reduction: Preloading reduces operational noise, leading to quieter machinery.
Vibration Control: Minimises vibration, improving overall equipment stability.
Extended Bearing Life: Reduces wear and tear, extending the bearing’s lifespan.
Thermal Compensation: Accommodates thermal expansion and tolerance variations, maintaining consistent performance.

For detailed size specifications, please refer to the links below. IEC is committed to providing high-quality bearing preload springs from ABIS to enhance your bearing applications’ performance and durability.

ABIS Bearing Lock Nuts Introduction

The bearing lock nut was developed to provide secure mounting and location of a bearing on a shaft. The manufacturer has more than 30 years experience in lock nut technology and their factory is TS 16949 approved.

Key Benefits

Secure locking
Available in Carbon and Stainless Steel
Superior material for high integrity product
Sizes from M10 to M100 available from stock
Tab washers also available from stock
Sockets/spanners available
KM lock nuts to DIN 981:2009

Abis Size Range and Ordering Information (Unit: mm)

Thread Size D₁	Carbon Steel	Stainless Steel	D₃	D₄	g	T	S	H	Tab Washer
M10 x0.75	KM00	KM00SS	18	13.5	14	2	3	4	MB0
M12 x1.0	KM01	KM01SS	22	17	18		3	4	MB1
M15 x1.0	KM02	KM01SS	25	21	21		4	5	MB2
M17 x1.0	KM03	KM03SS	28	24	24			5	MB3
M20 x1.0	KM04	KM04SS	32	26	28			6	MB4
M25 x1.5	KM05	KM05SS	38	32	34		5	7	MB5
M30 x1.5	KM06	KM06SS	45	38	41			7	MB6
M35 x1.5	KM07	KM07SS	52	44	48			8	MB7
M40 x1.5	KM08	KM08SS	58	50	53	2.5	6	9	MB8
M45 x1.5	KM09	KM09SS	65	56	60			10	MB9
M50 x1.5	KM10	KM10SS	70	61	65			11	MB10
M55 x2.0	KM11	KM11SS	75	67	69	3	7		MB11
M60 x2.0	KM12	KM12SS	80	73	74				MB12
M65 x2.0	KM13	KM13SS	85	79	79			12	MB13
M70 x2.0	KM14	KM14SS	92	85	85	3.5	8	12	MB14
M75 x2.0	KM15	KM15SS	98	90	91			13	MB15
M80 x2.0	KM16	KM16SS	105	95	98			15	MB16
M85 x2.0	KM17	KM17SS	110	102	103			16	MB17
M90 x2.0	KM18	KM18SS	120	108	112	4	10	16	MB18
M95 x2.0	KM19	KM19SS	125	113	117			17	MB19
M100 x2.0	KM20	KM20SS	130	120	122			18	MB20

Sockets and C spanners available on request.

Materials

Material	JIS		ISO		BS
Material	Nut	Washer	Nut	Washer	Nut	Washer
Carbon Steel	C45	DC01	1.0503	1.0330	070M46	CR4
Stainless Steel	SUS304	SUS304	1.4301	1.4301	304S31	304S31

Click here to download our datasheet.

Abis Miniature Ball Bearings Structure

Ball bearings benefit over plain bearings in terms of torque levels, rotational accuracy and speed capability. In their standard form they can support both radial and axial loads.

Basic rules for selection & handling of bearings

Selection

The efficiency of miniature or thin section bearings can be greatly affected by the precision of shaft and housing seats. The accuracy of the surrounding must be such that it will not adversely affect the operation of the bearing. If you have any questions, in particular regarding series 6700 and 6800, please contact us.
In applications with steel crown type cages (W type), where high acceleration, heavy loads, shock loads or vertical shafts occur or where oil is the only lubricant available, please contact us.
Selection of fitting clearance and grease type requires a careful consideration of rotating speed, load conditions and temperature in order to prevent premature bearing failure.
Full complement ball bearings are suitable for low speed and heavy radial load conditions. There is a danger of ball being pushed out of the bearing through the filling slot, even under light axial load. For this reason, full complement ball bearings are not suitable for supporting axial loads.

Handling

The actual assembly area should be kept free from dust as any contamination has a detrimental effect on the operation and life of rolling bearings. If there is any doubt concerning the cleanliness of a bearing, it can be washed with a suitable agent and then re-lubricated.
When bearings are being fitted care should be taken to ensure that the ring concerned is presented squarely to the mating surface and that any fitting load required is applied via the ring being fitted – NOT UNDER ANY CIRUMSTANCES FROM ONE RING TO THE OTHER THROUGH THE BALLS. If it is necessary to heat the bearing to facilitate fitting, the temperature should not exceed +120^oC.
After assembly, the bearing should be rotated to check its correct operation. If the bearing does not appear to be functioning correctly, it should be re-examined to establish the cause of the malfunction.
It is not advisable to mix oils and greases as this will affect the efficiency of the bearing.
Bearings must be stored in a clean environment with stable temperature. They should be handled with care to avoid the possibility of corrosion and rusting.
Lint-free cloth must be used to wipe shaft and housing seats to avoid the ingress of contaminants into the bearing.

Design & characteristics of radial ball bearings

In the majority of applications the size of the ball bearing is selected according to space considerations. Usually the load capacity which the selected bearing provides is more than adequate for the continuous loads to which it is subjected. In extreme cases, or which severe vibration or shock loading is known to occur, the load carrying capability should be checked.

The form which the bearing takes is entirely determined by the overall design philosophy.

Open or closed – is the bearing likely to become contaminated? Is escape or outgassing of lubricant an issue?

Normal or extended inner – is there sufficient clearance axially between rotating and stationery components?

Load – single low radial ball bearings with balls separated by a cage can support radial loads, axial loads and tilting moments. A full complement V-type ball bearing can support only radial loads and some low axial loads.Generally a full complement bearing is used when a higher radial load is required than the standard bearing provides.

Speed – maximum permissible speeds for ball bearings are mainly related to the bearing design and size, cage type, bearing internal clearance, method and type of lubrication, manufacturing accuracy, sealing methods and loads.

Torque and noise level – single low radial ball bearings are precision components and have low torque and noise levels.

Inclination or inner/outer rings – shaft and housing seats with poor accuracy, fitting errors and shaft bending might cause inclination between the inner and outer rings although the internal clearance of the bearing will permit this to a certain extent. Generally, the maximum permissible inclination between the inner and outer rings is approximately 1 in 300.

Toughness – bearings under load deform elastically at the contact point between the rolling element and bearing ring. This is influenced by the bearing type, size, form and load.

Installation and removal – the single row radial ball bearing is a non-separable bearing. Therefore, shafts and housings should be so designed to enable bearing inspection and replacement when necessary.

Axial location – improved axial location is obtained with Thrust type bearings.

Two important internal parameters which must be considered and specified when a bearing is selected are:

Radial play & internal clearance – the total diametrical movement from contact at one side between rings and balls to similar contact at the other side. It is normally stated in increments of tenths of a thousandth of an inch or microns. This parameter effects the torque level, the axial movement, the load carrying capacity, especially in an axial direction and, according to installation, the noise level and smoothness of the bearing.

Lubrication – the choice of oil or grease and the particular type of each, has an influence on the bearing performance. Noise level, speed, environment temperature, load and life are some of the various factors which should be considered when selecting lubricant.

Installation

To obtain the best performance, certain basic rules should be observed in the installation.

Keep Parts Clean

The clearance involved between the balls and tracks is very small and so any dirt particles present in the area of the tracks cause rough, noisy rotation and perhaps even permanent damage.

Keep Components Round

The inner and outer rings are generally of fairly thin section and no mating parts must be of good roundness to prevent distortion of the rings with consequent inaccurate rotation and roughness.

Keep Assemblies Shockfree

Since radial loads are supported on several contact points, shock loading can result in permanent deformation of the tracks and balls. The resulting craters again give rough, noisy rotation.

ABIS Lubricants

Lubrication of a bearing serves to:

Eliminate metal to metal contact
Reduce friction
Minimise temperature increase
Improve low torque characteristics
Reduce noise level
Prevent corrosion

Two major forms of lubricant are available—oil and grease.

Oil

In general, oil is used as a lubricant where grease is unsuitable, for example, where low torque or high speed are considerations. Typical oils used are the same as those used as the base oils in greases. The operational life of oils is usually much less than that of equivalent greases due to evaporative losses. One exception is the perfluorinated hydrocarbon family of oils that have extremely low saturated vapor pressure (SVP), giving greatly extended life.

Grease

Grease lubricant is comprised of a base oil carried in a thickening agent, which delays migration and evaporation of the oil, lengthening its effective operational and shelf life. Additives may also be included in the basic grease formula to improve corrosion resistance, reduce oxidation, and otherwise improve the lubricant performance. Grease lubrication is recommended unless low torque or high speed is essential to the application.

Lubricating - oil & grease

	Lubricating Oil	Lubricating Grease
Rotating speed	Low—Medium—High Speed	Low—Medium Speed
Lubricating efficiency	Excellent	Good
Cooling effect	Good	None
Torque	Comparatively low	Comparatively high
Lubricant life	Long	Comparatively short
Lubricant replacement	Easy	Difficult
Lubricant leakage	Should not be used where oil leakage is unacceptable	Little grease leakage
Impurities filtration	Easy	Difficult
Sealing equipment	Complex	Simple

Grease filling VOLUME

Symbol	Filing Volume (%)	Operating Conditions
Symbol	Filing Volume (%)	Speed	Load
M	70 + 10	Low	Heavy
S	50 + 10	Low	Medium
G	40 + 10	Medium	Medium
L Default Standard	30 + 10	Medium	Medium
Q	25 + 5	Medium	Medium
K	20 + 5	High	Light
X	10 + 5	High	Light

Note: Light load (< 0.06Cr)
Standard load (< 0.12Cr)

ABIS Bearings Criteria for Lubricating Oil Selection

Operating Temperature of Bearing (^oC)	DN	ISO Viscosity Grade of Lubricating Oil (VG)
		Medium Load	Heavy Load/Sock Load
-30~0	Up to permissible rotating speed	15/22/32	32/46
0~+60	Up to 15000	32/46/68	100
	15000~80000	32/46	68
	80000~150000	22/32	32
	150000~500000	10	22/32
+60~100	Up to 15000	150	220
	15000~800000	100	150
	80000~150000	68	100/150
	150000~500000	32	68
+100~+150	Up to permissible rotating speed	320

Notes

1. If heavy loads occur at low speeds, a high viscosity lubricating oil should be used.
2. This table is for oil bath lubrication system and recirculating oil systems.
3. dn = bearing bore diameter d(mm) x rotating speed n (r.p.m)

Common oil brands

Code	Brand	Lubricant Base	Viscosity (m²/s)	Operating Temperature (^oC)	Approved Standard	Comments
AF2*	Aero Shell Fluid 12	Diester	8.9 (54.4^oC)	-50~+205	MIL-PRF-6085D	Low viscosity, wide temperature range and high operating temperature. Good general purpose oil for instrument/ aircraft applications.
AF3	Aero Shell Fluid 3	Mineral	10.0 (38^oC)	-47~+115	MIL-PRF-7870C	Low viscosity, good general purpose oil for instrument/ aircraft applications.
KAZ	Krytox 143AZ	Fluorinated	12.4 (40^oC)	-54~+149	–	Inert, high temperature capability suitable for low speed/load. Impervious plastics/ elastomers.
PD8	Isoflex PDB38	Diester	12.0 (40^oC)	-55~+100	–	Low viscosity, good general purpose oil for instrument/ aircraft applications.

* Default lubricant and will be supplied unless otherwise specified.

** If you have a specific requirement for another oil please contact us for advice.

Common Grease Brands

Code	Brand	Thickening Agent	Lubricant Base	Operating Temperature (^oC)	Approved Standard	Comments
SRL*	Multemp SRLa	Lithium	Diester, Mineral	-50 – +205	–	Good temperature range, load capacity and water resistance.
AV2	Alvania 2S	Lithium	Mineral	-25 – +120	–	Good temperature range, load capacity and water resistance.
AG7	Aero Shell No. 7	Microgel	Diester	-73 – +149	MIL-PRF-8328D	Good temperature range, load capacity and water resistance.
AG2	Aero Shell No. 22	Microgel	Synthetic Hydrocarbon	-65 – +204	MIL-PRF-81322F	Good temperature range, high load/speed capacity and water resistance.
A3S	Aero Shell No. 33MS	Lithium	Synthetic Hydrocarbon Ester	-73 – +121	MIL-G-21164D	Low temperature, high load capacity and water resistance.
PS2	Multemp PS No. 2	Lithium	Diester, Mineral	-55 – +130	–	Good temperature range, load capacity and water resistance.
SL8	Isoflex Super LDS18	Lithium	Diester	-60 – +130	MIL-G-7118-A	Good temperature range, load capacity and water resistance
K24	Krytox 240AC	PFPE	Fluorinated	-35 – +238	MIL-G-27617	Suitable for high temperature applications. High viscosity at room temperature.
B32	Beacon 325	Lithium	Diester	-60 – +120	–	Suitable for low torque/quiet running applications.

* Default lubricant and will be supplied unless otherwise specified.

** If you have a specific requirement for another grease please contact us for advice.

BALL BEARING TECHNICAL DATA

Materials
Noise testing
Cage/Retainer Types
Closures
Radial Play
Internal Clearance
Lubricants
Importance of Correct Fitting of Bearings
Faults, Causes and Remedies
Tolerances

ABIS Miniature Ball Bearing Materials

The standard material for ABIS rings and balls is a vacuum degassed high carbon chromium steel allowing for high efficiency, low torque, low noise level and long bearing life. For bearings requiring anti-corrosion or heat-resistant properties, martensitic stainless steel is used.

Material	Sizes	Designation	Symbol	Chemical Composition (Wt%)
Material	Sizes	Designation	Symbol	C	Si	Mn	P	S	Cr	Mo
Chromium Steel	All	SUJ2 SAE 52100 100Cr6	–	0.95-1.10	0.15-0.35	<0.50	<0.025	<0.025	1.30-1.60	<0.08
Stainless Steel	d<25mm & D<52mm	KS440 (ACD34), X65Cr6	S, H	0.95-1.20	<1.00	<1.00	<0.040	<0.030	16.0-18.0	<0.75
Stainless Steel	d>25mm & D<52mm	SUS440C, AIS1440C, X102CrMo17	S, H	0.60-0.75	<1.00	<1.00	<0.030	<0.020	11.5-13.0	<0.030

ABIS Miniature Bearing Noise Testing

Bearing acoustical noise is a function of both the bearing itself and the way in which it is used. Bearings can be specified as 100% noise-tested during manufacture. Bearing noise is not generally influenced by ABEC precision, but rather by manufacturers’ internal quality standards, particularly raceway finish. There are no fixed reference standards among manufacturers for noise testing.

Noise Testing

The standard instrument used for bearing noise testing is the Anderon Meter (sometimes called Anderometer) made by Sugawara Laboratories. This measures noise with an accelerometer contacting the outer race of the bearing while the inner race is rotated at 1,800 RPM. Noise levels are separated into 3 bands, designated as follows:

High band 1,800 – 10,000 Hz
Medium band 300 – 1,800 Hz
Low band 50 – 300 Hz

According to the type of bearing (material and noise grade), a different attenuation is used for each band. Meters are calibrated in Anderons. Standard testing procedure requires that bearings are washed clean of any lubricant and 2 drops of fresh MIL-L-6085A oil lubricant added prior to testing.

Typical attenuation values for each band are given in the table below, according to bearing material and noise grade. A “pass” for any bearing grade is defined as < 40% of full scale on the Anderon meters for each band. In this case, this translates to pass levels of Low < 6.4, Med < 2.4, High < 3.2.

Anderon Meter Attenuation Settings
Material	Noise Rating	Low Band	Mid Band	High Band
5100 chrome steel	Standard	16	6	8
	EMQ	16	6	8
	EMQ2	12	6	8
440C/Martensitic stainless	Standard	16	10	24
	EMQ	16	10	24
	EMQ2	16	8	10
Anderon Meter <40% = good bearing

Abis Bearings RETAINER Cages

The retainer, also referred to as the cage or separator, is used to separate and position the balls at equal intervals around the bearing raceways. Retainers are available in two standard types, according to the size and design of the bearing itself. The most common is a 2-piece closed ball pocket design known as a ribbon retainer. The crown retainer is a single piece open ball pocket design.

W One-Piece Steel Crown Type	J Two-Piece Steel Ribbon Type	RJ Two-Piece Steel Rivet type	TW One-Piece Nylon Crown Type	V Full Complement of Balls
The stainless steel pressed cage is inner ring guided. It shows excellent performance in low torque, low speed applications.	Consists of two mating steel pressings, the cover side and the finger side. Usually guided by the rolling elements and designed to reduce frictional torque.	The RJ type case is suitable for larger bearings with a high load carrying capacity. The two pieces are riveted together and are strong enough to withstand higher levels of vibration and acceleration. The cage is guided by the balls and reduces frictional torque.	Moulded nylon cage. Reduces the fluctuation in running torque. Suitable for high speeds. Guided by the rolling elements. NYLON CAGE operating temperature range from -30 to +120^oC.	This type of bearing has no cage but maximum possible number of balls. Due to the fact that the inner and outer ring have a filling slot, the axial load carrying capacity of this bearing type is low. This type of bearing is suitable for high radial load, low speed applications.

Materials

Material	JIS		ISO		BS
Material	Nut	Washer	Nut	Washer	Nut	Washer
Carbon Steel	C45	DC01	1.0503	1.0330	070M46	CR4
Stainless Steel	SUS304	SUS304	1.4301	1.4301	304S31	304S31

Click here to download our datasheet.

Closures

A shield (non-contact) or seal (contact) is often installed to retain lubricant and to prevent contamination from entering the bearing raceways. These are available in a variety of materials and configurations.

ZZ Pressed Steel Shield	ZZS Steel Shield with Snap Ring	TTS Teflon Seal with Snap Ring	2RS Contact Rubber Seal	2RU Non-Contact Rubber Seal
Non-contact shield pressed into outer ring. Very little grease leakage and low ingress of contaminants.	Non-contact shield retained in outer ring. Low ingress of contaminants. Mainly used for smaller or narrower bearings.	Teflon seal reinforced with glass fibre is retained in outer ring by snap ring. Low ingress of contaminants. Mainly used for smaller or narrower bearings. Seal can flex to accommodate internal pressure changes. TEFLON SEAL operating temperature range from –100 to +260^oC.	Rubber seal fitted into outer ring. Light contact with inner ring, retains grease and prevents ingress of external contaminants. NBR SEAL operating temperature range from –40 to +120^oC. FKM (VITON) SEAL operating temperature range from –30 to +230^oC.	Non-contact rubber seal fitted into outer ring, still provides effective sealing. NBR SEAL operating temperature range from –40 to +120^oC. FKM (VITON) SEAL operating temperature range from –30 to +230^oC.

ABIS Bearings Radial Play

The radial play of a bearing has considerable influence on its performance. Therefore consideration must be given to the speed, temperature, load, adjacent materials (different coefficients of expansion) and fitting conditions associated with each individual application when selecting the appropriate group. The following notes are given for guidance against the various groups details in the table below:

Service requirements

RADIAL PLAY

Remarks

Miniature Bearings

Standard Metric Bearings

l/D

<10

10 only

10+ -18

18+ -24

24+ -30

30+ -40

40+ -50

0.001 mm

0.001 inch

Ref

0.001mm

Ref

Small bearing clearance required axially without the use of preload shims or springs. Low torque not the prime requirement. High thrust loads will not occur.

TIGHT

0-5 3-8

0-2 1-3

MC1 MC2

0-7

0-9

0-10

1-11

Interference fits must be avoided. Beware differential expansion. Careful attention should be paid to any excessive temperature rise in service.

Moderate torque acceptable. Moderate thrust loads may occur.

MEDIUM

5-10

2-4

MC3 (Std)

2-13

3-18

5-20

6-20

6-23

CN (CO) Std

Interference fits are not recommended.

8-13

3-5

MC4

8-23

11-25

13-28

15-33

18-36

Minimal torque required. Or High thrust load capability.

LOOSE

13-20

5-8

MC5

14-29

18-33

20-36

23-41

28-46

30-51

Moderate interference fits can be applied. Axial play may require to be controlled by shims or springs.

20-28

8-11

MC6

20-37

25-45

28-48

30-53

40-64

45-73

Materials

Material	JIS		ISO		BS
Material	Nut	Washer	Nut	Washer	Nut	Washer
Carbon Steel	C45	DC01	1.0503	1.0330	070M46	CR4
Stainless Steel	SUS304	SUS304	1.4301	1.4301	304S31	304S31

Click here to download our datasheet.

ABIS Bearings Internal clearance

This is generally referred to as radial play although it also incorporates axial play as well because it is actually the amount of space between the rolling elements of the bearing, namely inner ring, outer ring and balls.

Radial Play – is clearance perpendicular to the axis of the bearing and better described as the movement available to the outer ring when inner is fixed. This can be more accurately defined as follows: average diameter outer ring raceway minus average diameter of inner ring minus x2 ball diameter.

Axial Play – is the opposite of radial play as it is the movement of the rings relative to each other along the axis of the bearing. The amount of axial play is controlled by the bearing raceway curvature but as a general rule is around x10 the value of radial play.

Radial play is a major consideration when selecting a bearing. Prior to fitting a bearing has an ‘initial’ amount of play and after being mounted it has a ‘residual’ radial play (sometimes referred to as operational radial play as it is what is remaining). When a shaft is supported between bearings then consideration needs to be given to the alignment of the bearings as misalignment reduces radial play, therefore it is important that selection accounts for this. There should always be some ‘residual’ radial play after fitting as this extends bearing life by avoiding skidding and reducing axial play. There are a number of things that can change radial play during fitting. A tight shaft, larger than the inner ring, will expand the inner ring and this can reduce radial play up to 80% of the interference fit. The same thing happens if the outer ring is larger than the housing diameter, the ring is effectively compressed and reduces radial play in the same way. If there was a temperature difference seen between the shaft and the housing then thermal expansion either on the inner or outer ring, would lead to a reduction in radial play. This may be calculated as opposite: Chrome Steel – 0.0000125 x (inner ring temp – outer ring temp °C) x outer ring raceway diameter in mm. 440 Stainless Steel – 0.0000103 x (inner ring temp – outer ring temp °C) x outer ring raceway diameter in mm. The outer ring raceway diameter is roughly calculated as: 0.2 x (d + 4D) where d is the bore in mm and D is the outer diameter in mm. Another factor to consider relating to thermal expansion is the material that is used for the shaft and housing. For example, a housing material with a higher coefficient of expansion than the bearing material could under certain conditions ‘squeeze’ the bearing outer ring and reduce radial play.

Importance of correct fitting of bearings

A bearing can only perform to its full capacity when it is correctly fitted on the shaft and in the housing. Insufficient interference on fitting surfaces could cause bearing rings to creep in a circumferential direction. Once this happens, considerable wear occurs on the fitting surface and both shaft and housing can be damaged. Furthermore, abrasive particles may enter the bearing causing vibration, excessive heat and damage to raceways. It is therefore necessary to provide bearing rings under rotating load with an adequate interference fit to prevent creep. When using thin-type bearings under low load, the bearings should be fastened by a nut. Statically loaded bearings generally do not need to be fitted with an interference fit. Only when subject to a high degree of vibration do both inner and outer rings require fitting with an interference fit.

Fitting of Bearing and Shaft
Condition (Steel Shaft)		Shaft Bore Diameter	Shaft Tolerance Class
Condition (Steel Shaft)		Shaft Bore Diameter	Thin-Type	Others
Inner ring rotating load or indeterminate load direction	Light load ≤ 0.06C or fluctuating load	10 ≤ d ≤ 18 18 ≤ d ≤ 30 30 ≤ d ≤ 50	h5 h5 h5	js5 js5 js5
Inner ring rotating load or indeterminate load direction	Standard load = 0.06 – 0.11C	10 ≤ d ≤ 18 18 ≤ d ≤ 30 30 ≤ d ≤ 50	js5 js5 js5	j5 k5 k5
Outer ring rotating load	Necessary for inner ring turning easily around shaft	All bore diameters	g6	g6
Outer ring rotating load	Unnecessary for inner ring turning easily around shaft	All bore diameters	h6	h6

Fitting of Bearing and Housing
Condition (One-Piece Housing)		Axial Directional Movement of Outer Ring	Tolerance Class of Housing Seats
Condition (One-Piece Housing)		Axial Directional Movement of Outer Ring	Thin-Type	Others
Inner ring rotating load	Varying loads	Easy to move	H7	H7
	Light or standard loads	Easy to move	H8	H8
	High temperature of inner ring and shaft	Easy to move	G7	G7
	Light or standard load Precision rotation	As a rule, impossible to move	K6	K6
	Light or standard load Precision rotation	Possible to move	JS6	J6
	Quiet operations	Easy to move	H6	H6
Indeterminate load direction	Light or standard load	In general, possible to move	JS7	J7
	Standard or heavy load	As a rule, impossible to move	K7	K7
	Large shock load	Impossible to move	M7	M7
	Light or fluctuating load	Impossible to move	M7	M7
Outer ring rotating load	Standard or heavy load	Impossible to move	N7	N7
Outer ring rotating load	Thin-type housing seats heavy or large shock load	Impossible to move	P7	P7

Characteristics of Load and Fitting
Rotating Ring	Load	Load Condition	Fitting
		Inner ring rotating loadOuter ring static load	Interference fit for inner ringClearance fit for outer ring
		Inner ring rotating loadOuter ring static load	Interference fit for inner ringClearance fit for outer ring
		Outer ring rotating loadInner ring static load	Clearance fit for inner ringInterference fit for outer ring
		Outer ring rotating loadInner ring static load	Clearance fit for inner ringInterference fit for outer ring
In case of fluctuating load direction or unbalanced load	Rotating or static	Indeterminate load direction	Interference fit for inner and outer ring

Faults, Causes & Remedies

Problem		Causes	Remedy
Noise	High pitched metallic noise	Poor lubrication Clearance to small Poor fitting Excessive load	Improve lubrication Correct clearance Investigate mounting method and seating Examine shaft and housing tolerances for closing effect
	Low pitched metallic noise	Brinelled raceway surface	Avoid shock loads
	Regular noise	Rust and damage Flaking of raceway surface	Check and replace seals and re-lubricate Improve lubrication and check fitting, clearance and fixing method
	Irregular noise	Ingress of foreign matter Excessive clearance Damage and flaking of rolling element	Check and replace seals and re-lubricate Correct clearance Reduce loads and/or clearance
	Variable noise	Variable clearance due to temperature changes Damage to raceways	Check fits taking housing materials and temperature into clearance Improve lubrication and check fitting, clearance and fixing method
Heavy vibration		Flaking of raceway and rolling element Ingress of foreign matter Excessive clearance Poor location	Improve lubrication and check fitting, clearance and fixing method Check and replace seals and re-lubricate Correct clearance Ensure abutment face and fitting diameter are perpendicular
Excessive heat generation		Clearance too small Poor location Excessive load Poor lubrication Creep	Correct clearance Ensure abutment face and fitting diameter are perpendicular Examine shaft and housing tolerances for closing effect Improve lubrication Maintain recommended shaft and housing fits
Lubrication failure		Too much grease Ingress of foreign matter	Use the correct lubricant quantity Check and replace seals and re-lubricate

ABIS BEaring Tolerances

For inch bearings tolerances are based on Section 3 of the AFBMA Standards for ABEC Class 1 and Section 12 for ABEC Class 3. Refer to Table 1.

For metric series bearings up to 9mm outer diameter tolerances are based on AFBMA Standards as above. For diameters over 9mm they are based on ISO R492-R1648 tolerances Class P0, P6 and P5. Refer to Tables 1 & 2.

N.B. Thin section bearings, Series E only, are available in tolerance Class P5.

Table 1

Bearings with bore sizes 0-0.375 inches, 0-18mm. Outside diameters 0-30mm

ABEC						Parameters	ISO
Unit 0.0001 Inch							Unit 0.001mm
Class 1		Class 3		Class 5			Class 0		Class 6		Class 5
High	Low	High	Low	High	Low	Inner Ring Diameter	High	Low	High	Low	High	Low
0	-3	0	-3	0	-2	Mean value of bore dm	0	-8	0	-7	0	-5
+1	-4	+1	-3	0	-2	Absolute value of bore d	+2	-10	+1	-8	0	-5
3	–	2	–	1.5	–	Radial run out (max.)	10	–	6		5
0	-50	0	-50	0	-10	Width B	0	-120	0	-120	0	-25
–	–	–	–	–	2	Width variation (max.)	12	–	15	–	–	5
High	Low	High	Low	High	Low	Outer Ring Diameter	High	Low	High	Low	High	Low
0	-3	0	-3	–	-2	Mean value of OD (open) Dm	0	-8	0	-7	0	-5
+1	-4	+1	-4	–	-2	Absolute value of OD (open) D	+2	-10	+1	-8	0	-5
+2	-5	+2	-5	–	–	Absolute value of OD (closed) D	–	–	–	–	–	–
6	–	4		2	–	Radial run out (max.)	15	–	8	–	5	–
0	-50	0	-50	0	-10	Width B	0	-120	0	-120	0	-25
–	–	+50	-10	–	–	Flange diameter D_f	+125	-50⁽¹⁾	+125	-50⁽¹⁾	–	–
–	–	0	-50	–	–	Flange width B_f	0	-50⁽¹⁾	0	-50⁽¹⁾	–	–

(1) Manufacturers tolerances

Table 2 Bearings with bore sizes 20-34mm. Outside diameter 31-80mm.

Parameters	ISO
	Unit 0.001mm
	Class 0				Class 6				Class 5
Inner Ring Diameter	20-30		35-45		20-30		35-45		20-30		35-45
Inner Ring Diameter	High	Low	High	Low	High	Low	High	Low	High	Low	High	Low
Mean value of bore dm	0	-10	0	12	0	-8	0	-10	0	-6	0	-8
Absolute value of bore d	+3	-13	+3	-15	+1	-9	+1	-11	0	-6	–	-8
Radial run out (max.)	13	–	15	–	8	–	10	–	4	–	5	–
Width B	0	-120	0	-120	0	-120	0	-120	0	-120	0	-120
Width variation (max.)	20	–	20	–	20	–	20	–	5	–	5	–
Outer Ring Diameter	32-50		52-80		32-50		52-80		32-50		52-80
Outer Ring Diameter	High	Low	High	Low	High	Low	High	Low	High	Low	High	Low
Mean value of OD (open) Dm	0	-11	0	-13	0	-9	0	-11	0	-7	0	-9
Absolute value of OD (open) D	+3	-14	+4	-17	+2	-11	+2	-13	0	-7	0	-9
Absolute value of OD (closed) D	+7	-18	+10	-23	+6	-15	+7	-18	–	–	–	–
Radial run out (max.)	20	–	25	–	10	–	13	–	7	–	8	–
Width B	0	-120	0	-120	0	-120	0	-120	0	-120	0	-120

Open Ball Bearings

Metric Series

Bore Ø (d)	Outer Ø (D)	Open Width (B)	Radius (rs – min)	Open Part No	Load Rating Cr(N)	Load Rating Cor(N)	Max Speed Grease (x1000 rpm)	Max Speed Oil (x1000 rpm)	Cage Type
0.6	2.5	1	0.05	68/0.6	68	16	142	160	W
1	3	1	0.05	681	96	26	130	150	W
1	3	1.5	0.05	MR31	96	26	130	150	W
1	4	1.6	0.1	691	141	37	100	120	W
1.2	4	1.8	0.1	MR41X	112	33	110	130	W
1.5	4	1.2	0.05	681X	112	33	100	120	W
1.5	5	2	0.15	691X	169	50	85	100	W
1.5	6	2.5	0.15	601X	330	99	75	90	W
2	4	1.2	0.5	672	124	40	91	104	W
2	5	1.5	0.08	682	169	50	85	100	W
2	5	2	0.1	MR52	169	50	85	100	W
2	6	2.3	0.15	692	330	99	75	90	W/J/TW
2	6	2.5	0.15	MR62	330	99	75	90	WJ
2	7	2.5	0.15	MR72	386	129	63	75	W
2	7	2.8	0.15	602	386	129	60	71	W
2.5	6	1.8	0.08	682X	209	74	71	80	W
2.5	7	2.5	0.15	692X	386	129	63	75	W
2.5	8	2.5	0.2	MR82X	558	180	60	67	W
2.5	8	2.8	0.15	602X	552	177	60	71	W
3	6	2	0.1	MR63	209	74	71	80	W
3	7	2	0.1	683	311	112	63	75	W
3	8	2.5	0.15	MR83	395	141	60	67	J
3	8	3	0.15	693	558	180	60	67	W/J/TW
3	9	2.5	0.2	MR93	571	189	56	67	W
3	9	3	0.15	603	571	189	56	67	W
3	10	4	0.15	623	631	219	50	60	J/TW
3	13	5	0.2	633	1301	488	40	48	J
4	7	2	0.1	MR74	311	115	60	67	W
4	8	2	0.15	MR84	395	141	56	67	W/J/TW
4	9	2.5	0.1	684	641	227	53	63	W/J/TW
4	10	3	0.2	MR104	711	272	48	56	J
4	11	4	0.15	694	957	350	48	56	J
4	12	4	0.2	604	957	350	48	56	J
4	13	5	0.2	624	1301	488	40	48	J
4	16	5	0.3	634	1340	523	36	43	J
5	8	2	0.1	MF85	308	120	53	63	W
5	9	2.5	0.15	MR95	431	169	50	60	W
5	10	3	0.15	MR105	431	169	50	60	W
5	11		0.15	MR115	716	282	45	53	J
5	11	3	0.15	685	716	282	45	53	J/TW
5	13	4	0.2	695	1077	432	43	50	J
5	14	5	0.2	605	1329	507	40	50	J/TW
5	16	5	0.3	625	1729	675	36	43	J/TW
5	19	6	0.3	635	2336	896	32	40	J/TW
6	10	2.5	0.15	MR106	496	218	45	53	W
6	12	3	0.2	MR126	716	295	43	50	W/J/TW
6	13	3.5	0.15	686	1082	442	40	50	J/TW
6	15	5	0.2	696	1340	523	40	45	J
6	16	5	0.2	696A	1340	523	40	45	J
6	17	6	0.3	606	2263	846	38	45	J
6	19	6	0.3	626	2336	896	32	40	J/TW
6	22	7	0.3	636	3333	1423	30	36	J/TW
7	11	2.5	0.15	MR117	455	202	43	50	W
7	13	3	0.2	MR137	541	276	40	48	W
7	14	3.5	0.15	687	1173	513	40	50	J
7	17	5	0.3	697	1605	719	36	43	J
7	19	6	0.3	607	2336	896	36	43	J/TW
7	22	7	0.3	627	3287	1379	30	36	J/TW
7	26	9	0.3	637	4563	1983	28	34	J
8	12	2.5	0.15	MR128	543	274	40	48	W
8	14	3.5	0.2	MR148	817	386	38	45	J
8	16	4	0.2	688	1252	592	36	43	J/TW
8	19	6	0.3	698	2237	917	36	43	J
8	22	7	0.3	608	3293	1379	34	40	J/TW
8	24	8	0.3	628	3333	1423	28	34	J
8	28	9	0.3	638	4563	1983	28	34	J
9	14	3	0.1	679	919	468	36	42	J
9	17	4	0.2	689	1327	668	36	43	J
9	20	6	0.3	699	2467	1081	34	40	J
9	24	7	0.3	609	3356	1444	32	38	J
9	26	8	0.60(⁵)	629	4563	1983	28	34	J
9	30	10	0.6	639	4659	2080	24	30	J

Open ball bearings

Inch series

Bore Ø (d)	Outer Ø (D)	Open Width (B)	Open Flange Width (Bf)	Radius (rs – min)	Open Part No	Load Rating Cr(N)	Load Rating Cor(N)	Max Speed Grease (x1000 rpm)	Max Speed Oil (x1000 rpm)	Cage Type
0.04	0.125	0.0469	0.013	0.0039	R09	106	28	130	150	W
0.0469	0.1562	0.0625	0.013	0.0039	R0*	112	33	110	130	W
0.055	0.1875	0.0781	0.023	0.0039	R1*	232	67	90	110	W
0.0781	0.25	0.0937	0.023	0.0039	R1-4*	284	96	67	80	W
0.0937	0.1875	0.0625	0.018	0.0039	R133	189	60	80	95	W
0.0937	0.3125	0.1094	0.023	0.0059	R1-5*	552	176	60	71	W
0.125	0.25	0.0937	0.023	0.0039	R144J*	311	110	67	80	J
0.125	0.25	0.0937	0.023	0.0039	R144*	284	96	67	80	W
0.125	0.3125	0.1094	0.023	0.0039	R2-5*	558	180	60	67	W/J
0.125	0.375	0.1094	0.023	0.0059	R2-6*	640	227	53	63	J
0.125	0.375	0.1562	0.03	0.0118	R2*	631	219	56	67	J
0.125	0.5	0.1719		0.0118	R2A	640	227	53	63	J
0.1562	0.3125	0.1094	0.023	0.0039	R155*	359	150	53	63	W
0.1875	0.3125	0.1094	0.023	0.0039	R156*	359	150	53	63	W
0.1875	0.375	0.125	0.023	0.0039	R166*	709	272	50	60	J
0.1875	0.5	0.1562		0.0118	R3*	1301	488	43	53	J
0.1875	0.625	0.196		0.0118	R3A	1480	621	38	45	J
0.25	0.375	0.125	0.023	0.0039	R168*	373	172	48	56	W
0.25	0.5	0.125	0.023	0.0059	R188*	1082	442	40	50	J
0.25	0.625	0.196	0.042	0.0118	R4*	1480	621	38	45	J
0.25	0.75	0.2188		0.0157	R4A	2336	896	36	43	J
0.3125	0.5	0.1562	0.031	0.0059	R1810*	542	276	40	48	W
0.375	0.875	0.2188	0.062	0.0157	R6	3332	1411	32	38	J
0.5	1.125	0.25	0.062	0.0157	R8	5108	2413	27	32	J
0.625	1.375	0.2812		0.0315	R10	5999	3265	21	25	RJ
0.75	1.625	0.3125		0.0315	R12	9384	5057	17	21	RJ/TW

Notes

*Available with inner ring width extended by 0.0156″ (0.3962mm) each side
Bearings also available with stainless materials: prefix S
Bearing also available with single shield or seal: suffix Z, RS, RU or TS

Extra thin open ball bearings - 6700 6800 6900

Metric Series

Bore Ø (d)	Outer Ø (D)	Flange Ø (Df)	Open Width (B)	Open Flange Width (Bf)	Radius (rs – min)	Open Part No	Load Rating Cr(N)	Load Rating Cor(N)	Max Speed Grease (x1000 rpm)	Max Speed Oil (x1000 rpm)	Cage Type
10	15	16.5	3	0.8	0.15	6700	855	435	15	17	W
10	19	21	5	1	0.3	6800	1716	840	37	43	J/TW
10	19	21	7	1.5	0.3	63800	1716	840	37	43	J/TW
10	22	25	6	1.5	0.3	6900	2695	1273	34	41	J
12	18	19.5	4	0.8	0.2	6701	926	530	13	15	W
12	21	23	5	1.1	0.3	6801	1915	1041	33	39	J/TW
12	21	23	7	1.5	0.3	63801	1915	1041	33	39	J/W
12	24	26.5	6	1.5	0.3	6901	2886	1446	31	36	J
15	21	22.5	4	0.8	0.2	6702	937	582	11	13	W
15	24	26	5	1.1	0.3	6802	2073	1253	28	33	J/TW
15	24	26	7	1.5	0.3	63802	2073	1253	28	33	J/TW
15	28	30.5	7	1.5	0.3	6902	4321	2259	26	30	J
17	23	24.5	4	0.8	0.2	6703	1000	658	9.5	11	W
17	26	28	5	1.1	0.3	6803	2233	1456	26	30	J/TW
17	26	28	7	1.5	0.3	63803	2233	1456	26	30	J/TW
17	30	32.5	7	1.5	0.3	6903	4588	2565	23	38	J
20	27	28.5	4	0.8	0.2	6704	1402	729	8.5	10	W
20	32	35	7	1.5	0.3	6804	4015	2462	21	25	J/RJ
20	32	35	10	2	0.3	63804	4015	2462	21	25	J/RJ
20	37	40	9	2	0.3	6904	6381	3682	19	23	RJ
25	32	34	4	1	0.2	6705	1091	838	7	8	W
25	37	40	7	1.5	0.3	6805	4303	2932	18	21	J/RJ
25	37	40	10	2	0.3	63805	4303	2932	18	21	J/RJ
25	42	45	9	2	0.3	6905	7001	4540	16	19	RJ
30	37	39	4	1	0.2	6706	1143	947	5.5	7	W
30	42	45	7	1.5	0.3	6806	4538	3402	15	18	J/RJ
30	42	45	10	2	0.3	63806	4538	3402	15	18	J/RJ
30	47	50	9	2	0.3	6906	7242	5003	14	17	RJ
35	44		5		0.3	6707	1866	1635	4.9	6	W
35	47	50	7	1.5	0.3	6807	4729	3821	13	16	J/RJ
35	55	58	10	2.5	0.6	6907	10900	7818	12	14	RJ
40	50		6		0.3	6708	2516	2233	4.3	5	W
40	52	55	7	1.5	0.3	6808	4923	4178	12	14	J
40	62	65	12	2.5	0.6	6908	13678	9968	11	13	RJ
45	55		6		0.3	6709	2580	2397	3.9	4.6	W
45	58	61	7	1.5	0.3	6809	6187	5381	11	13	J
45	68	71	12	2.5	0.6	6909	14100	10830	9.7	11	RJ
50	62		6		0.3	6710	2670	2640	3.5	4.1	W
50	65	68	7	1.5	0.3	6810	6610	6090	9.6	11	J/RJ
50	72	75	12	2.5	0.6	6910	14540	11710	9	11	RJ
55	72		9		0.3	6811	8800	8100	8.7	10	RJ
55	80		13		1	6911	16600	14100	8.1	9.6	RJ
60	78		10		0.3	6812	11500	10600	8	9.4	RJ
60	85		13		1	6912	20200	17300	7.5	8.9	RJ
65	85		10		0.6	6813	11900	11500	7.3	8.6	RJ
65	90		13		1	6913	17400	16100	7.1	8.4	RJ
70	90		10		0.6	6814	12100	11900	6.8	8.1	RJ
70	100		16		1	6914	23700	21200	6.4	7.6	RJ
75	95		10		0.6	6815	12500	12900	12.5	12.9	RJ
75	105		16		1	6915	24400	22600	6.1	7.2	RJ
80	100		10		0.6	6816	12700	13300	12.7	13.3	RJ
80	110		16		1	6916	25000	24000	5.7	6.8	RJ
85	110		13		1	6817	18700	19000	5.6	6.6	RJ
85	120		18		1.1	6917	31900	29600	5.3	6.3	RJ
90	115		13		1	6818	19000	19700	5.3	6.3	RJ
90	125		18		1.1	6918	32800	31600	5.1	6	RJ

Notes

Bearings also available with stainless materials: suffix H
Bearing also available with single shield or seal: suffix Z, RS, RU or TS

LARGE SIZE STAINLESS STEEL OPEN BALL BEARINGS 6000H 6200H 6300H

Metric Series

Bore Ø (d)	Outer Ø (D)	Open Width (B)	Radius (rs – min)	Open Part No	Load Rating Cr(N)	Load Rating Cor(N)	Max Speed Grease (x1000 rpm)	Max Speed Oil (x1000 rpm)	Cage Type
10	26	8	0.3	6000H*	3860	1570	31	36	J
10	30	9	0.6	6200H*	4340	1920	24	29	RJ/TW
10	35	11	0.6	6300H	6870	2750	22	27	RJ
12	28	8	0.3	6001H*	4340	1910	27	32	J/TW
12	32	10	0.6	6201H	5770	2450	22	27	RJ/TW
12	37	12	1	6301H	8240	3360	20	25	RJ
15	32	9	0.3	6002H*	4750	2270	23	27	RJ/TW
15	35	11	0.6	6202H	6490	3000	20	24	RJ/TW
15	42	13	1	6302H	9710	4370	17	20	RJ
17	35	10	0.3	6003H	5090	2630	21	25	RJ/TW
17	40	12	0.6	6203H	8130	3850	17	21	RJ/TW
17	47	14	1	6303H	11550	5330	15	18	RJ
20	42	12	0.6	6004H	7960	4050	17	21	RJ/TW
20	47	14	1	6204H	10910	5360	15	17	RJ/TW
20	52	15	1.1	6304H	13490	6310	14	17	RJ
25	47	12	0.6	6005H	8550	4690	15	18	RJ/TW
25	52	15	1	6205H	11900	7390	13	15	RJ/TW
25	62	17	1.1	6305H	17490	9060	11	13	RJ
30	55	13	1	6006H	11240	6610	13	15	RJ/TW
30	62	16	1	6206H	16530	9080	11	13	RJ/TW
30	72	19	1.1	6306H	22630	12080	9.6	12	RJ
35	62	14	1	6007H	13560	8250	11	13	RJ
35	72	17	1.1	6207H	21810	12360	9.2	11	RJ
35	80	21	1.5	6307H	28290	15270	8.5	10	RJ
40	68	15	1	6008H	14250	9220	10	12	RJ
40	80	18	1.1	6208H	24730	14330	8.3	10	RJ
45	75	16	1	6009H	15150	9660	9.2	11	RJ
45	85	19	1.1	6209H	27790	16300	7.7	9.2	RJ
50	80	16	1	6010H	18510	13260	8.4	9.9	RJ
50	90	20	1.1	6210H	29800	18610	7.1	8.5	RJ

* Bearings also available with Carbon Chrome material: without H suffix Bearings also available with single shield or seal: suffix Z, RS, RU or TS

EXTRA THIN OPEN BALL BEARINGS - ET, ER

Metric series

Bore Ø (d)	Outer Ø (D)	Open Width (B)	Shield/ Seal Width (B1)	Radius (rs – min)	Open Part No	Load Rating Cr(N)	Load Rating Cor(N)	Max Speed Grease (x1000 rpm)	Max Speed Oil (x1000 rpm)	Cage Type
15	20	3.5		0.15	ET2015	942	582	22	26	W
15	21	3.5		0.15	ET2115	939	581	22	26	W
16	22	4		0.15	ET2216	968	619	20	24	W
16	23	4.5	4.5	0.15	ET2316	968	619	20	24	W
18	24	4		0.15	ET2418	988	654	18	21	W
20	25	4	4	0.15	ET2520	1011	691	17	20	W

Bearings also available with single shield or seal: suffix ZS or TS Bearings also available with stainless material: suffix S

Abis Flange Open Ball Bearings

Metric Series

Bore Ø (d)	Outer Ø (D)	Flange Ø (Df)	Open Width (B)	Open Flange Width (Bf)	Radius (rs – min)	Flange Open Part No	Load Rating Cr(N)	Load Rating Cor(N)	Max Speed Grease (x1000 rpm)	Max Speed Oil (x1000 rpm)	Cage Type
1	3	3.8	1	0.3	0.05	F681	96	26	130	150	W
1	4	5	1.6	0.5	0.1	F691	141	37	100	120	W
1.2	4	4.8	1.8	0.4	0.1	MF41X	112	33	110	130	W
1.5	4	5	1.2	0.4	0.05	F681X	112	33	100	120	W
1.5	5	6.5	2	0.6	0.15	F691X	169	50	85	100	W
1.5	6	7.5	2.5	0.6	0.15	F601X	330	99	75	90	W
2	5	6.1	1.5	0.5	0.08	F682	169	50	85	100	W
2	5	6.2	2	0.6	0.1	MF52	169	50	85	100	W
2	6	7.5	2.3	0.6	0.15	F692	330	99	75	90	W/J/TW
2	6	7.2	2.5	0.6	0.15	MF62	330	99	75	90	WJ
2	7	8.2	2.5	0.6	0.15	MF72	386	129	63	75	W
2	7	8.5	2.8	0.7	0.15	F602	386	129	60	71	W
2.5	6	7.1	1.8	0.5	0.08	F682X	209	74	71	80	W
2.5	7	8.5	2.5	0.7	0.15	F692Z	386	129	63	75	W
2.5	8	9.2	2.5	0.6	0.2	MF82X	558	180	60	67	W
2.5	8	9.5	2.8	0.7	0.15	F602X	552	177	60	71	W
3	6	7.2	2	0.6	0.1	MF63	209	74	71	80	W
3	7	8.1	2	0.5	0.1	F683	311	112	63	75	W
3	8	9.2	2.5	0.6	0.15	MF83	395	141	60	67	J
3	8	9.5	3	0.7	0.15	F693	558	180	60	67	W/J/TW
3	9	10.2*	2.5	0.6	0.2	MF93	571	189	56	67	W
3	9	10.5	3	0.7	0.15	F603	571	189	56	67	W
3	10	11.5	4	1	0.15	F623	631	219	50	60	J/TW
4	7	8.2	2	0.6	0.1	MF74	311	115	60	67	W
4	8	9.2	2	0.6	0.15	MF84	395	141	56	67	W/J/TW
4	9	10.3	2.5	0.6	0.1	F684	641	227	53	63	W/J/TW
4	10	11.2*	3	0.6	0.2	MF104	711	272	48	56	J
4	11	12.5	4	1	0.15	F694	957	350	48	56	J
4	12	13.5	4	1	0.2	F604	957	350	48	56	J
4	13	15	5	1	0.2	F624	1301	488	40	48	J
4	16	18	5	1	0.3	F634	1340	523	36	43	J
5	8	9.2	2	0.6	0.1	MF85	308	120	53	63	W
5	9	10.2	2.5	0.6	0.15	MF95	431	169	50	60	W
5	10	11.2*	3	0.6	0.15	MF105	431	169	50	60	W
5	11	12.6			0.15	MF115	716	282	45	53	J
5	11	12.5	3	0.8	0.15	F685	716	282	45	53	J/TW
5	13	15	4	1	0.2	F695	1077	432	43	50	J
5	14	16	5	1	0.2	F605	1329	507	40	50	J/TW
5	16	18	5	1	0.3	F625	1729	675	36	43	J/TW
5	19	22	6	1.5	0.3	F635	2336	896	32	40	J/TW
6	10	11.2	2.5	0.6	0.15	MF106	496	218	45	53	W
6	12	13.2*	3	0.6	0.2	MF126	716	295	43	50	W/J/TW
6	13	15	3.5	1	0.15	F686	1082	442	40	50	J/TW
6	15	17	5	1.2	0.2	F696	1340	523	40	45	J
6	17	19	6	1.2	0.3	F606	2263	846	38	45	J
6	19	22	6	1.5	0.3	F626	2336	896	32	40	J,TW
7	11	12.2	2.5	0.6	0.15	MF117	455	202	43	50	W
7	13	14.2*	3	0.6	0.2	MF137	541	276	40	48	W
7	14	16	3.5	1	0.15	F687	1173	513	40	50	J
7	17	19	5	1.2	0.3	F697	1605	719	36	43	J
7	19	22	6	1.5	0.3	F607	2336	896	36	43	J/TW
7	22	25	7	1.5	0.3	F627	3287	1379	30	36	J/TW
8	12	13.2*	2.5	0.6	0.15	MF128	543	274	40	48	W
8	14	15.6	3.5	0.8	0.2	MF148	817	386	38	45	J
8	16	18	4	1	0.2	F688	1252	592	36	43	J/TW
8	19	22	6	1.5	0.3	F698	2237	917	36	43	J
8	22	25	7	1.5	0.3	F608	3293	1379	34	40	J/TW
9	14	15.5	3	0.8	0.1	F679	919	468	36	42	J
9	17	19	4	1	0.2	F689	1327	668	36	43	J
9	20	23	6	1.5	0.3	F699	2467	1081	34	40	J
9	24	27	7	1.5	0.3	F609	3356	1444	32	38	J

Notes for all bearing lists

* This dimension is increased by 0.4mm for shielded or seal version
Bearings also available with stainless materials: suffix S or H
Bearing also available with single shield or seal: suffix Z, RS, RU or TS
TTS⁽⁴⁾ uses smaller ball, load rating is lower than standard
Value ⁽⁵⁾ is not based up upon JIS B 1521

Flange open ball bearings

Inch series

Bore Ø (d)	Outer Ø (D)	Flange Ø (Df)	Open Width (B)	Open Flange Width (Bf)	Radius (rs – min)	Flange Open Part No	Load Rating Cr(N)	Load Rating Cor(N)	Max Speed Grease (x1000 rpm)	Max Speed Oil (x1000 rpm)	Cage Type
0.04	0.125	0.171	0.0469	0.013	0.0039	FR09	106	28	130	150	W
0.0469	0.1562	0.203	0.0625	0.013	0.0039	FR0**	112	33	110	130	W
0.055	0.1875	0.234	0.0781	0.023	0.0039	FR1**	232	67	90	110	W
0.0781	0.25	0.296	0.0937	0.023	0.0039	FR1-4**	284	96	67	80	W
0.0937	0.1875	0.234	0.0625	0.018	0.0039	FR133	189	60	80	95	W
0.0937	0.3125	0.359	0.1094	0.023	0.0059	FR1-5**	552	176	60	71	W
0.125	0.25	0.296	0.0937	0.023	0.0039	FR144J**	311	110	67	80	J
0.125	0.25	0.296	0.0937	0.023	0.0039	FR144**	284	96	67	80	W
0.125	0.3125	0.359	0.1094	0.023	0.0039	FR2-5**	558	180	60	67	W/J
0.125	0.375	0.422	0.1094	0.023	0.0059	FR2-6**	640	227	53	63	J
0.125	0.375	0.44	0.1562	0.03	0.0118	FR2**	631	219	56	67	J
0.1562	0.3125	0.359	0.1094	0.023	0.0039	FR155**	359	150	53	63	W
0.1875	0.3125	0.359	0.1094	0.023	0.0039	FR156**	359	150	53	63	W
0.1875	0.375	0.422	0.125	0.023	0.0039	FR166**	709	272	50	60	J
0.1875	0.5	0.565	0.196	0.042	0.0118	FR3**	1301	488	43	53	J
0.25	0.375	0.422	0.125	0.023	0.0039	FR168**	373	172	48	56	W
0.25	0.5	0.547	0.125	0.023	0.0059	FR188**	1082	442	40	50	J
0.25	0.625	0.69	0.196	0.042	0.0118	FR4**	1480	621	38	45	J
0.3125	0.5	0.547	0.1562	0.031	0.0059	FR1810	542	276	40	48	W
0.375	0.875	0.969	0.2188	0.062	0.0157	FR6**	3332	1411	32	38	J
0.5	1.125	1.2252	0.25	0.062	0.0157	FR8**	5108	2413	27	32	J

Notes

** Available with inner ring width extended by 0.0156″ (0.3962mm) each side
Bearings also available with stainless materials: prefix S
Bearing also available with single shield or seal: suffix Z, RS, RU or TS

Extra thin flange open ball bearings - 6700 6800 6900

Metric Series

Bore Ø (d)	Outer Ø (D)	Flange Ø (Df)	Open Width (B)	Open Flange Width (Bf)	Radius (rs – min)	Flange Open Part No	Load Rating Cr(N)	Load Rating Cor(N)	Max Speed Grease (x1000 rpm)	Max Speed Oil (x1000 rpm)	Cage Type
10	15	16.5	3	0.8	0.15	F6700	855	435	15	17	W
10	19	21	5	1	0.3	F6800	1716	840	37	43	J/TW
10	19	21	7	1.5	0.3	F63800	1716	840	37	43	J/TW
10	22	25	6	1.5	0.3	F6900	2695	1273	34	41	J
12	18	19.5	4	0.8	0.2	F6701	926	530	13	15	W
12	21	23	5	1.1	0.3	F6801	1915	1041	33	39	J/TW
12	21	23	7	1.5	0.3	F63801	1915	1041	33	39	J/TW
12	24	26.5	6	1.5	0.3	F6901	2886	1446	31	36	J
15	21	22.5	4	0.8	0.2	F6702	937	582	11	13	W
15	24	26	5	1.1	0.3	F6802	2073	1253	28	33	J/TW
15	24	26	7	1.5	0.3	F63802	2073	1253	28	33	J/TW
15	28	30.5	7	1.5	0.3	F6902	4321	2259	26	30	J
17	23	24.5	4	0.8	0.2	F6703	1000	658	9.5	11	W
17	26	28	5	1.1	0.3	F6803	2233	1456	26	30	J/TW
17	26	28	7	1.5	0.3	F63803	2233	1456	26	30	J/TW
17	30	32.5	7	1.5	0.3	F6903	4588	2565	23	38	J
20	27	28.5	4	0.8	0.2	F6704	1402	729	8.5	10	W
20	32	35	7	1.5	0.3	F6804	4015	2462	21	25	J/RJ
20	32	35	10	2	0.3	F63804	4015	2462	21	25	J/RJ
20	37	40	9	2	0.3	F6904	6381	3682	19	23	RJ
25	32	34	4	1	0.2	F6705	1091	838	7	8	W
25	37	40	7	1.5	0.3	F6805	4303	2932	18	21	J/RJ
25	37	40	10	2	0.3	F63805	4303	2932	18	21	J/RJ
25	42	45	9	2	0.3	F6905	7001	4540	16	19	RJ
30	37	39	4	1	0.2	F6706	1143	947	5.5	7	W
30	42	45	7	1.5	0.3	F6806	4538	3402	15	18	J/RJ
30	42	45	10	2	0.3	F63806	4538	3402	15	18	J/RJ
30	47	50	9	2	0.3	F6906	7242	5003	14	17	RJ
35	47	50	7	1.5	0.3	F6807	4729	3821	13	16	J/RJ
35	55	58	10	2.5	0.6	F6907	10900	7818	12	14	RJ
40	52	55	7	1.5	0.3	F6808	4923	4178	12	14	J
40	62	65	12	2.5	0.6	F6908	13678	9968	11	13	RJ
45	58	61	7	1.5	0.3	F6809	6187	5381	11	13	J
45	68	71	12	2.5	0.6	F6909	14100	10830	9.7	11	RJ
50	65	68	7	1.5	0.3	F6810	6610	6090	9.6	11	J/RJ
50	72	75	12	2.5	0.6	F6910	14540	11710	9	11	RJ

Notes

Bearings also available with stainless materials: suffix H
Bearing also available with single shield or seal: suffix Z, RS, RU or TS

Shield ball bearings inch

Extra thin shield ball bearings - 6700 6800 6900

Metric Series

Bore Ø (d)	Outer Ø (D)	Flange Ø (Df)	Open Width (B)	Open Flange Width (Bf)	Radius (rs – min)	Shield Part No	Load Rating Cr(N)	Load Rating Cor(N)	Max Speed Grease (x1000 rpm)	Max Speed Oil (x1000 rpm)	Cage Type
10	15	16.5	4	0.8	0.15	6700ZZS	855	435	15	17	W
10	19	21	5	1	0.3	6800ZZ	1716	840	37	43	J/TW
10	19	21	7	1.5	0.3	63800ZZ	1716	840	37	43	J/TW
10	22	25	6	1.5	0.3	6900ZZ	2695	1273	34	41	J
12	18	19.5	4	0.8	0.2	6701ZZS	926	530	13	15	W
12	21	23	5	1.1	0.3	6801ZZ	1915	1041	33	39	J/TW
12	21	23	7	1.5	0.3	63801ZZ	1915	1041	33	39	J/TW
12	24	26.5	6	1.5	0.3	6901ZZ	2886	1446	31	36	J
15	21	22.5	4	0.8	0.2	6702ZZS	937	582	11	13	W
15	24	26	5	1.1	0.3	6802ZZ	2073	1253	28	33	J/TW
15	24	26	7	1.5	0.3	63802ZZ	2073	1253	28	33	J/TW
15	28	30.5	7	1.5	0.3	6902ZZ	4321	2259	26	30	J
17	23	24.5	4	0.8	0.2	6703ZZS	1000	658	9.5	11	W
17	26	28	5	1.1	0.3	6803ZZ	2233	1456	26	30	J/TW
17	26	28	7	1.5	0.3	63803ZZ	2233	1456	26	30	J/TW
17	30	32.5	7	1.5	0.3	6903ZZ	4588	2565	23	38	J
20	27	28.5	4	0.8	0.2	6704ZZS	1402	729	8.5	10	W
20	32	35	7	1.5	0.3	6804ZZ	4015	2462	21	25	J/RJ
20	32	35	10	2	0.3	63804ZZ	4015	2462	21	25	J/RJ
20	37	40	9	2	0.3	6904ZZ	6381	3682	19	23	RJ
25	37	40	7	1.5	0.3	6805ZZ	4303	2932	18	21	J/RJ
25	37	40	10	2	0.3	63805ZZ	4303	2932	18	21	J/RJ
25	42	45	9	2	0.3	6905ZZ	7001	4540	16	19	RJ
30	42	45	7	1.5	0.3	6806ZZ	4538	3402	15	18	J/RJ
30	42	45	10	2	0.3	63806ZZ	4538	3402	15	18	J/RJ
30	47	50	9	2	0.3	6906ZZ	7242	5003	14	17	RJ
35	47	50	7	1.5	0.3	6807ZZ	4729	3821	13	16	J/RJ
35	55	58	10	2.5	0.6	6907ZZ	10900	7818	12	14	RJ
40	52	55	7	1.5	0.3	6808ZZ	4923	4178	12	14	J
40	62	65	12	2.5	0.6	6908ZZ	13678	9968	11	13	RJ
45	58	61	7	1.5	0.3	6809ZZ	6187	5381	11	13	J
45	68	71	12	2.5	0.6	6909ZZ	14100	10830	9.7	11	RJ
50	65	68	7	1.5	0.3	6810ZZ	6610	6090	9.6	11	J/RJ
50	72	75	12	2.5	0.6	6910ZZ	14540	11710	9	11	RJ
55	72		9		0.3	6811ZZ	8800	8100	8.7	10	RJ
55	80		13		1	6911ZZ	16600	14100	8.1	9.6	RJ
60	78		10		0.3	6812ZZ	11500	10600	8	9.4	RJ
60	85		13		1	6912ZZ	20200	17300	7.5	8.9	RJ
65	85		10		0.6	6813ZZ	11900	11500	7.3	8.6	RJ
65	90		13		1	6913ZZ	17400	16100	7.1	8.4	RJ
70	90		10		0.6	6814ZZ	12100	11900	6.8	8.1	RJ
70	100		16		1	6914ZZ	23700	21200	6.4	7.6	RJ
75	95		10		0.6	6815ZZ	12500	12900	12.5	12.9	RJ
75	105		16		1	6915ZZ	24400	22600	6.1	7.2	RJ
80	100		10		0.6	6816ZZ	12700	13300	12.7	13.3	RJ
80	110		16		1	6916ZZ	25000	24000	5.7	6.8	RJ
85	110		13		1	6817ZZ	18700	19000	5.6	6.6	RJ
85	120		18		1.1	6917ZZ	31900	29600	5.3	6.3	RJ
90	115		13		1	6818ZZ	19000	19700	5.3	6.3	RJ
90	125		18		1.1	6918ZZ	32800	31600	5.1	6	RJ

Notes

Bearings also available with stainless materials: suffix H
Bearing also available with single shield or seal: suffix Z, RS, RU or TS
Carbon Chrome bearings use RJ type retainer, stainless steel bearings use J type retainer

Thrust Series FM With Raceway Ball Bearings

Metric series

Bearing Ref	Inner Ring Bore Ø	Outer Ring Bore Ø	Inner Ring Bore Ø	Inner Ring Bore Ø	Radius	Height	Load Rating		Max Speed (x1000rpm)		Cage Type
	d	D	d₁	D₁	r_s (min)	H	Load Rating		Max Speed (x1000rpm)
	mm	mm	mm	mm	mm	mm	Ca(N)	Coa(N)	Grease	Oil
F3-8M	3	8	3.2	7.8	0.15	3.5	993	590	19	28	TP
F4-9M	4	9	4.2	8.8	0.15	4.0	944	640	17	25	TP
F4-10M	4	10	4.2	9.8	0.15	4.0	925	661	16	24	TP
F5-12M	5	12	5.2	11.8	0.20	4.0	1056	942	14	22	TP
F6-12M	6	12	6.2	11.8	0.20	4.5	1819	1588	14	20	TP
F6-14M	6	14	6.25	13.8	0.20	5.0	2155	1701	12	18	TP
F7-13M	7	13	7.2	16.8	0.20	4.5	1767	1645	13	20	TP
F7-17M	7	17	7.2	16.8	0.30	6.0	3086	2675	10	15	TP
F8-16M	8	16	8.2	15.8	0.30	5.0	3917	3394	11	17	TP
F8-19M	8	19	8.2	18.8	0.30	7.0	3939	3476	9	13	TP
F9-20M	9	20	9.2	19.8	0.30	7.0	3855	3571	8	13	TP
F10-18M	10	18	10.2	17.8	0.30	5.5	2470	2721	10	15	TP

Bearings also available with stainless materials: suffix H

ABIS flange shield ball bearings

Metric Series

Bore Øs (d)	Outer Ø (D)	Flange Ø (Df)	Radius (rs – min)	Flange Shield Part No	Shield Width (B1)	Shield Flange Width (Bf1)	Load Rating Cr(N)	Load Rating Cor(N)	Max Speed Grease (x1000 rpm)	Max Speed Oil (x1000 rpm)	Cage Type
1.2	4	4.8	0.1	MF41XZZ	2.5		112	33	110	130	W
1.5	4	5	0.05	F681XZZ	2	0.6	112	33	100	120	W
1.5	5	6.5	0.15	F691XZZ	2.6	0.8	169	50	85	100	W
1.5	6	7.5	0.15	F601XZZ	3	0.8	330	99	75	90	W
2	5	6.1	0.08	F682ZZ	2.3	0.6	169	50	85	100	W
2	5	6.2	0.1	MF52ZZ	2.5	0.6	169	50	85	100	W
2	6	7.5	0.15	F692ZZ	3	0.8	330	99	75	90	W/J/TW
2	6	7.2	0.15	MF62ZZ	2.5		330	99	75	90	WJ
2	7	8.2	0.15	MF72ZZS	3	0.6	386	129	63	75	W
2	7	8.5	0.15	F602ZZS	3.5	0.9	386	129	60	71	W
2.5	6	7.1	0.08	F682XZZ	2.6	0.8	209	74	71	80	W
2.5	7	8.5	0.15	F692XZZS	3.5	0.9	386	129	63	75	W
2.5	8	9.5	0.15	F602XZZ	4	0.9	552	177	60	71	W
3	6	7.2	0.1	MF63ZZ	2.5	0.6	209	74	71	80	W
3	7	8.1	0.1	F683ZZ	3	0.8	311	112	63	75	W
3	8	9.2	0.15	MF83ZZ	3		395	141	60	67	J
3	8	9.5	0.15	F693ZZ	4	0.9	558	180	60	67	W/J/TW
3	9	10.2*	0.2	MF93ZZ	4	0.8	571	189	56	67	W
3	9	10.5	0.15	F603ZZ	5	1	571	189	56	67	W
3	10	11.5	0.15	F623ZZ	4	1	631	219	50	60	J/TW
4	7	8.2	0.1	MF74ZZ	2.5	0.6	255	108	60	67	W
4	8	9.2	0.1	MF84ZZ	3	0.6	395	141	56	67	W/J/TW
4	9	10.3	0.1	F684ZZ	4	1	641	227	53	63	W/J/TW
4	10	11.2*	0.15	MF104ZZ	4	0.8	711	272	48	56	J
4	11	12.5	0.15	F694ZZ	4	1	957	350	48	56	J
4	12	13.5	0.2	F604ZZ	4	1	957	350	48	56	J
4	13	15	0.2	F624ZZ	5	1	1301	488	40	48	J
4	16	18	0.3	F634ZZ	5	1	1340	523	36	43	J
5	8	9.2	0.1	MR85ZZ	2.5	0.6	218	90	53	63	W
5	9	10.2	0.15	MF95ZZ	3	0.6	431	169	50	60	W
5	10	11.2*	0.15	MF105ZZ	4	0.8	431	169	50	60	W
5	11	12.6	0.15	MF115ZZ	4	0.8	716	282	45	53	J
5	11	12.5	0.15	F685ZZ	5	1	716	282	45	53	J/TW
5	13	15	0.2	F695ZZ	4	1	1077	432	43	50	J
5	14	16	0.2	F605ZZ	5	1	1329	507	40	50	J/TW
5	16	18	0.3	F625ZZ	5	1	1729	675	36	43	J/TW
5	19	22	0.3	F635ZZ	6	1.5	2336	896	32	40	J/TW
6	10	11.2	0.1	MF106ZZ	3	0.6	496	218	45	53	W
6	12	13.2*	0.15	MF126ZZ	4	0.8	716	295	43	50	W/J/TW
6	13	15	0.15	F686ZZ	5	1.1	1082	442	40	50	J/TW
6	15	17	0.2	F696ZZ	5	1.2	1340	523	40	45	J
6	17	19	0.3	F606ZZ	6	1.2	2263	846	38	45	J
6	19	22	0.3	F626ZZ	6	1.5	2336	896	32	40	J/TW
7	11	12.2	0.1	MF117ZZS	3	0.6	455	202	43	50	W
7	13	14.2*	0.15	MF137ZZ	4	0.8	541	276	40	48	W
7	14	16	0.15	F687ZZ	5	1.1	1173	513	40	50	J
7	17	19	0.3	F697ZZ	5	1.2	1605	719	36	43	J
7	19	22	0.3	F607ZZ	6	1.5	2336	896	36	43	J/TW
7	22	25	0.3	F627ZZ	7	1.5	3287	1379	30	36	J/TW
8	12	13.2*	0.1	MF128ZZ	3.5	0.8	543	274	40	48	W
8	14	15.6	0.15	MF148ZZ	4	0.8	817	386	38	45	J
8	16	18	0.2	F688ZZ	5	1.1	1252	592	36	43	J/TW
8	19	22	0.3	F698ZZ	6	1.5	2237	917	36	43	J
8	22	25	0.3	F608ZZ	7	1.5	3293	1379	34	40	J,TW
9	14	15.5	0.1	F679ZZS	4.5	0.8	919	468	36	42	J
9	17	19	0.2	F689ZZ	5	1.1	1327	668	36	43	J
9	20	23	0.3	F699ZZ	6	1.5	2467	1081	34	40	J
9	24	27	0.3	F609ZZ	7	1.5	3356	1444	32	38	J

Notes

* This dimension is increased by 0.4mm for shielded or seal version
Bearings also available with stainless materials: suffix S or H
Bearing also available with single shield or seal: suffix Z, RS, RU or TS
TTS⁽⁴⁾ uses smaller ball, load rating is lower than standard
Value ⁽⁵⁾ is not based up upon JIS B 1521

Flange shield ball bearings

Inch series

Bore Ø (d)	Outer Ø (D)	Flange Ø (Df)	Radius (rs – min)	Flange Shield Part No	Shield Width (B1)	Shield Flange Width (Bf1)	Load Rating Cr(N)	Load Rating Cor(N)	Max Speed Grease (x1000 rpm)	Max Speed Oil (x1000 rpm)	Cage Type
0.0469	0.1562	0.203	0.0039	FR0ZZ**	0.0937	0.031	112	33	110	130	W
0.055	0.1875	0.234	0.0039	FR1ZZ**	0.1094	0.031	232	67	90	110	W
0.0781	0.25	0.296	0.0039	FR1-4ZZ**	0.1406	0.031	284	96	67	80	W
0.0937	0.1875	0.234	0.0039	FR133ZZS**	0.0937	0.031	144	53	80	95	W
0.0937	0.3125	0.359	0.0059	FR1-5ZZS**	0.1406	0.031	552	176	60	71	W
0.125	0.25	0.296	0.0039	FR144JZZ**	0.1094	0.031	311	110	67	80	J
0.125	0.25	0.296	0.0039	FR144ZZ**	0.1094	0.031	284	96	67	80	W
0.125	0.3125	0.359	0.0039	FR2-5ZZ**	0.1406	0.031	558	180	60	67	W/J
0.125	0.375	0.422	0.0059	FR2-6ZZ**	0.1406	0.031	640	227	53	63	J
0.125	0.375	0.44	0.0118	FR2ZZ**	0.1562	0.03	631	219	56	67	J
0.1562	0.3125	0.359	0.0039	FR155ZZS**	0.125	0.036	359	150	53	63	W
0.1875	0.3125	0.359	0.0039	FR156ZZS**	0.125	0.036	359	150	53	63	W
0.1875	0.375	0.422	0.0039	FR166ZZ*	0.125	0.031	709	272	50	60	J
0.25	0.375	0.422	0.0039	FR168ZZS**	0.125	0.036	373	172	48	56	W
0.25	0.5	0.547	0.0059	FR188ZZ**	0.1875	0.045	1082	442	40	50	J
0.25	0.625	0.69	0.0118	FR4ZZ**	0.196	0.0633	1480	621	38	45	J
0.3125	0.5	0.547	0.0059	FR1810ZZS	0.1562	0.031	542	276	40	48	W
0.375	0.875	0.969	0.0157	FR6ZZ**	0.2812	0.062	3332	1411	32	38	J
0.5	1.125	1.2252	0.0157	FR8ZZ**	0.3125	0.062	5108	2413	27	32	J
0.625	1.375	1.49	0.0315	FR10ZZ	0.3438	0.0687	5999	3265	21	25	RJ

Notes

** Available with inner ring width extended by 0.0156″ (0.3962mm) each side
Bearings also available with stainless materials: prefix S
Ball bearings also available with single shield or seal: suffix Z, RS, RU or TS

Extra thin flange open ball bearings - 6700 6800 6900

Metric Series

Bore Ø (d)	Outer Ø (D)	Flange Ø (Df)	Open Width (B)	Open Flange Width (Bf)	Radius (rs – min)	Flange Shield Part No	Load Rating Cr(N)	Load Rating Cor(N)	Max Speed Grease (x1000 rpm)	Max Speed Oil (x1000 rpm)	Cage Type
10	15	16.5	4	0.8	0.15	F6700ZZS	855	435	15	17	W
10	19	21	5	1	0.3	F6800ZZ	1716	840	37	43	J/TW
10	19	21	7	1.5	0.3	F63800ZZ	1716	840	37	43	J/TW
10	22	25	6	1.5	0.3	F6900ZZ	2695	1273	34	41	J
12	18	19.5	4	0.8	0.2	F6701ZZS	926	530	13	15	W
12	21	23	5	1.1	0.3	F6801ZZ	1915	1041	33	39	J/TW
12	21	23	7	1.5	0.3	F63801ZZ	1915	1041	33	39	J/TW
12	24	26.5	6	1.5	0.3	F6901ZZ	2886	1446	31	36	J
15	21	22.5	4	0.8	0.2	F6702ZZS	937	582	11	13	W
15	24	26	5	1.1	0.3	F6802ZZ	2073	1253	28	33	J/TW
15	24	26	7	1.5	0.3	F63802ZZ	2073	1253	28	33	J/TW
15	28	30.5	7	1.5	0.3	F6902ZZ	4321	2259	26	30	J
17	23	24.5	4	0.8	0.2	F6703ZZS	1000	658	9.5	11	W
17	26	28	5	1.1	0.3	F6803ZZ	2233	1456	26	30	J/TW
17	26	28	7	1.5	0.3	F63803ZZ	2233	1456	26	30	J/TW
17	30	32.5	7	1.5	0.3	F6903ZZ	4588	2565	23	38	J
20	27	28.5	4	0.8	0.2	F6704ZZS	1402	729	8.5	10	W
20	32	35	7	1.5	0.3	F6804ZZ	4015	2462	21	25	J/RJ
20	32	35	10	2	0.3	F63804ZZ	4015	2462	21	25	J/RJ
20	37	40	9	2	0.3	F6904ZZ	6381	3682	19	23	RJ
25	37	40	7	1.5	0.3	F6805ZZ	4303	2932	18	21	J/RJ
25	37	40	10	2	0.3	F63805ZZ	4303	2932	18	21	J/RJ
25	42	45	9	2	0.3	F6905ZZ	7001	4540	16	19	RJ
30	42	45	7	1.5	0.3	F6806ZZ	4538	3402	15	18	J/RJ
30	42	45	10	2	0.3	F63806ZZ	4538	3402	15	18	J/RJ
30	47	50	9	2	0.3	F6906ZZ	7242	5003	14	17	RJ
35	47	50	7	1.5	0.3	F6807ZZ	4729	3821	13	16	J/RJ
35	55	58	10	2.5	0.6	F6907ZZ	10900	7818	12	14	RJ
40	52	55	7	1.5	0.3	F6808ZZ	4923	4178	12	14	J
40	62	65	12	2.5	0.6	F6908ZZ	13678	9968	11	13	RJ
45	58	61	7	1.5	0.3	F6809ZZ	6187	5381	11	13	J
45	68	71	12	2.5	0.6	F6909ZZ	14100	10830	9.7	11	RJ
50	65	68	7	1.5	0.3	F6810ZZ	6610	6090	9.6	11	J/RJ
50	72	75	12	2.5	0.6	F6910ZZ	14540	11710	9	11	RJ

ABIS 2RS Seal Ball Bearings

Metric Series

Bore Ø (d)	Outer Ø (D)	Flange Ø (Df)	Radius (rs – min)	2RS Seal Part No	Flange 2RS Seal Part No	Shield Width (B1)	Shield Flange Width (Bf1)	Load Rating Cr(N)	Load Rating Cor(N)	Max Speed Grease (x1000 rpm)	Max Speed Oil (x1000 rpm)	Cage Type
3	8	9.5	0.15	6932RS	F6932RS	4	0.9	558	180	60	67	W/J/TW
3	10	11.5	0.15	6232RS	F6232RS	4	1	631	219	50	60	J/TW
3	13		0.2	6332RS		5		1301	488	40	48	J
4	9	10.3	0.1	6842RS	F6842RS	4	1	641	227	53	63	W/J/TW
4	10	11.2*	0.2	MR1042RS	MF1042RS	4	0.8	711	272	48	56	J
4	11	12.5	0.15	6942RS	F6942RS	4	1	957	350	48	56	J
4	12	13.5	0.2	6042RS	F6042RS	4	1	957	350	48	56	J
4	13	15	0.2	6242RS	F6242RS	5	1	1301	488	40	48	J
4	16	18	0.3	6342RS	F6342RS	5	1	1340	523	36	43	J
5	10	11.2*	0.15	MR1052RS	MF1052RS	4	0.8	431	169	50	60	W
5	11	12.6	0.15	MR1152RS	MF1152RS	4	0.8	716	282	45	53	J
5	11	12.5	0.15	6852RS	F6852RS	5	1	716	282	45	53	J/TW
5	13	15	0.2	6952RS	F6952RS	4	1	1077	432	43	50	J
5	14	16	0.2	6052RS	F6052RS	5	1	1329	507	40	50	J/TW
5	16	18	0.3	6252RS	F6252RS	5	1	1729	675	36	43	J/TW
5	19	22	0.3	6352RS	F6352RS	6	1.5	2336	896	32	40	J/TW
6	12	13.2*	0.15	MR1262RS	MF1262RS	4	0.8	716	295	43	50	W/J/TW
6	13	15	0.15	6862RS	F6862RS	5	1.1	1082	442	40	50	J,TW
6	15	17	0.2	6962RS	F6962RS	5	1.2	1340	523	40	45	J
6	16		0.2	696A2RS		5		1340	523	40	45	J
6	17	19	0.3	6062RS	F6062RS	6	1.2	2263	846	38	45	J
6	19	22	0.3	6262RS	F6262RS	6	1.5	2336	896	32	40	J/TW
6	22		0.3	6362RS		7		3333	1423	30	36	J/TW
7	14	16	0.15	6872RS	F6872RS	5	1.1	1173	513	40	50	J
7	17	19	0.3	6972RS	F6972RS	5	1.2	1605	719	36	43	J
7	19	22	0.3	6072RS	F6072RS	6	1.5	2336	896	36	43	J/TW
7	22	25	0.3	6272RS	F6272RS	7	1.5	3287	1379	30	36	J/TW
7	26		0.3	6372RS		9		4563	1983	28	34	J
8	14	15.6	0.2	MR1482RS	MF1482RS	4	0.8	817	386	38	45	J
8	16	18	0.2	6882RS	F6882RS	5	1.1	1252	592	36	43	J/TW
8	19	22	0.3	6982RS	F6982RS	6	1.5	2237	917	36	43	J
8	22	25	0.3	6082RS	F6082RS	7	1.5	3293	1379	34	40	J/TW
8	24		0.3	6282RS		8		3333	1423	28	34	J
8	28		0.3	6382RS		9		4563	1983	28	34	J
9	17	19	0.2	6892RS	6892RS	5	1.1	1327	668	36	43	J
9	20	23	0.3	6992RS	6992RS	6	1.5	2467	1081	34	40	J
9	24	27	0.3	6092RS	F6092RS	7	1.5	3356	1444	32	38	J
9	26		0.60(⁵)	6292RS		8		4563	1983	28	34	J
9	30		0.6	6392RS		10		4659	2080	24	30	J

Notes

*This dimension is increased by 0.4mm for shielded or sealed version
Bearings also available with stainless materials: suffix S or H
Bearing also available with single shield or seal: suffix Z, RS, RU or TS
TTS(4) uses smaller ball, load rating is lower than standard
Value (5) is not based up upon JIS B 1521

IEC are one of the biggest bearing distributors in the UK.

ABIS 2RS Seal Ball Bearings

Inch series

Bore Ø (d)	Outer Ø (D)	Flange Ø (Df)	Radius (rs – min)	2RS Seal Part No	Flange 2RS Seal Part No	Shield Width (B1)	Shield Flange Width (Bf1)	Load Rating Cr(N)	Load Rating Cor(N)	Max Speed Grease (x1000 rpm)	Max Speed Oil (x1000 rpm)	Cage Type
0.125	0.375	0.422	0.0059	R262RS**	FR262RS**	0.1406	0.031	640	227	53	63	J
0.125	0.375	0.44	0.0118	R22RS**	FR22RS**	0.1562	0.03	631	219	56	67	J
0.1875	0.5	0.565	0.0118	R22RS**		0.196	0.042	1301	488	43	53	J
0.1875	0.625		0.0118	R3A2RS		0.196		1480	621	38	45	J
0.25	0.5	0.547	0.0059	R1882RS**	FR1882RS**	0.1875	0.045	1082	442	40	50	J
0.25	0.625	0.69	0.0118	R42RS**	FR42RS**	0.196	0.0633	1480	621	38	45	J
0.25	0.75		0.0157	R4A2RS		0.2812		2336	896	36	43	J
0.375	0.875	0.969	0.0157	R62RS	FR62RS**	0.2812	0.062	3332	1411	32	38	J
0.5	1.125	1.2252	0.0157	R82RS	FR82RS**	0.3125	0.062	5108	2413	27	32	J
0.625	1.375	1.49	0.0315	R102RS	FR102RS	0.3438	0.0687	5999	3265	21	25	RJ
0.75	1.625		0.0315	R122RS		0.4375		9384	5057	17	21	RJ/TW

Extra Thin 2RS Seal Ball Bearings - 6700 6800 6900

Metric Series

Bore Ø (d)	Outer Ø (D)	Flange Ø (Df)	Open Width (B)	Open Flange Width (Bf)	Radius (rs – min)	2RS Seal Part No	Flange 2RS Seal Part No	Load Rating Cr(N)	Load Rating Cor(N)	Max Speed Grease (x1000 rpm)	Max Speed Oil (x1000 rpm)
10	15	16.5	3	0.8	0.15	67002RS		855	435	15	17
10	19	21	5	1	0.3	68002RS	F68002RS	1716	840	37	43
10	19	21	7	1.5	0.3	638002RS	F638002RS	1716	840	37	43
10	22	25	6	1.5	0.3	69002RS	F69002RS	2695	1273	34	41
12	18	19.5	4	0.8	0.2	67012RS	F67012RS	926	530	13	15
12	21	23	5	1.1	0.3	68012RS	F68012RS	1915	1041	33	39
12	21	23	7	1.5	0.3	638012RS	F638012RS	1915	1041	33	39
12	24	26.5	6	1.5	0.3	69012RS	F69012RS	2886	1446	31	36
15	21	22.5	4	0.8	0.2	67022RS	F67022RS	937	582	11	13
15	24	26	5	1.1	0.3	68022RS	F68022RS	2073	1253	28	33
15	24	26	7	1.5	0.3	638022RS	F638022RS	2073	1253	28	33
15	28	30.5	7	1.5	0.3	69022RS	F69022RS	4321	2259	26	30
17	23	24.5	4	0.8	0.2	67032RS	F67032RS	1000	658	9.5	11
17	26	28	5	1.1	0.3	68032RS	F68032RS	2233	1456	26	30
17	26	28	7	1.5	0.3	638032RS	F638032RS	2233	1456	26	30
17	30	32.5	7	1.5	0.3	69032RS	F69032RS	4588	2565	23	38
20	27	28.5	4	0.8	0.2	67042RS	F67042RS	1402	729	8.5	10
20	32	35	7	1.5	0.3	68042RS	F68042RS	4015	2462	21	25
20	32	35	10	2	0.3	638042RS	F638042RS	4015	2462	21	25
20	37	40	9	2	0.3	69042RS	F69042RS	6381	3682	19	23
25	32	34	4	1	0.2	67052RS	F67052RS	1091	838	7	8
25	37	40	7	1.5	0.3	68052RS	F68052RS	4303	2932	18	21
25	37	40	10	2	0.3	638052RS	F638052RS	4303	2932	18	21
25	42	45	9	2	0.3	69052RS	F69052RS	7001	4540	16	19
30	42	45	7	1.5	0.3	68062RS	F68062RS	4538	3402	15	18
30	42	45	10	2	0.3	638062RS	F638062RS	4538	3402	15	18
30	47	50	9	2	0.3	69062RS	F69062RS	7242	5003	14	17
35	44		5		0.3	67072RS		1866	1635	4.9	6
35	47	50	7	1.5	0.3	68072RS	F68072RS	4729	3821	13	16
35	55	58	10	2.5	0.6	69072RS	F69072RS	10900	7818	12	14
40	50		6		0.3	67082RS		2516	2233	4.3	5
40	52	55	7	1.5	0.3	68082RS	F68082RS	4923	4178	12	14
40	62	65	12	2.5	0.6	69082RS	F69082RS	13678	9968	11	13
45	55		6		0.3	67902RS		2580	2397	3.9	4.6
45	58	61	7	1.5	0.3	68092RS	F68092RS	6187	5381	11	13
45	68	71	12	2.5	0.6	69092RS	F69092RS	14100	10830	9.7	11
50	62		6		0.3	67102RS		2670	2640	3.5	4.1
50	65	68	7	1.5	0.3	68102RS	F68102RS	6610	6090	9.6	11
50	72	75	12	2.5	0.6	69102RS	F69102RS	14540	11710	9	11
55	72		9		0.3	68112RS		8800	8100	8.7	10
55	80		13		1	69112RS		16600	14100	8.1	9.6
60	78		10		0.3	68122RS		11500	10600	8	9.4
60	85		13		1	69122RS		20200	17300	7.5	8.9
65	85		10		0.6	68132RS		11900	11500	7.3	8.6
65	90		13		1	69132RS		17400	16100	7.1	8.4
70	90		10		0.6	68142RS		12100	11900	6.8	8.1
70	100		16		1	68142RS		23700	21200	6.4	7.6
75	95		10		0.6	68152RS		12500	12900	12.5	12.9
75	105		16		1	69152RS		24400	22600	6.1	7.2
80	100		10		0.6	68162RS		12700	13300	12.7	13.3
80	110		16		1	69162RS		25000	24000	5.7	6.8
85	110		13		1	68172RS		18700	19000	5.6	6.6
85	120		18		1.1	69172RS		31900	29600	5.3	6.3
90	115		13		1	68182RS		19000	19700	5.3	6.3
90	125		18		1.1	69182RS		32800	31600	5.1	6

Large Size Stainless Steel 2RS Seal Ball Bearings 6000H 6200H 6300H

Metric Series

Bore Ø (d)	Outer Ø (D)	Open Width (B)	Radius (rs – min)	2RS Seal Part No	Load Rating Cr(N)	Load Rating Cor(N)	Max Speed Grease (x1000 rpm)	Max Speed Oil (x1000 rpm)	Cage Type
10	26	8	0.3	6000H2RS*	3860	1570	31	36	J
10	30	9	0.6	6200H2RS*	4340	1920	24	29	RJ/TW
10	35	11	0.6	6300H2RS	6870	2750	22	27	RJ
12	28	8	0.3	6001H2RS*	4340	1910	27	32	J/TW
12	32	10	0.6	6201H2RS	5770	2450	22	27	RJ/TW
12	37	12	1	6301H2RS	8240	3360	20	25	RJ
15	32	9	0.3	6002H2RS*	4750	2270	23	27	RJ/TW
15	35	11	0.6	6202H2RS	6490	3000	20	24	RJ/TW
15	42	13	1	6302H2RS	9710	4370	17	20	RJ
17	35	10	0.3	6003H2RS	5090	2630	21	25	RJ/TW
17	40	12	0.6	6203H2RS	8130	3850	17	21	RJ/TW
17	47	14	1	6303H2RS	11550	5330	15	18	RJ
20	42	12	0.6	6004H2RS	7960	4050	17	21	RJ/TW
20	47	14	1	6204H2RS	10910	5360	15	17	RJ,/W
20	52	15	1.1	6304H2RS	13490	6310	14	17	RJ
25	47	12	0.6	6005H2RS	8550	4690	15	18	RJ/TW
25	52	15	1	6205H2RS	11900	7390	13	15	RJ/TW
25	62	17	1.1	6305H2RS	17490	9060	11	13	RJ
30	55	13	1	6006H2RS	11240	6610	13	15	RJ/TW
30	62	16	1	6206H2RS	16530	9080	11	13	RJ/TW
30	72	19	1.1	6306H2RS	22630	12080	9.6	12	RJ
35	62	14	1	6007H2RS	13560	8250	11	13	RJ
35	72	17	1.1	6207H2RS	21810	12360	9.2	11	RJ
35	80	21	1.5	6307H2RS	28290	15270	8.5	10	RJ
40	68	15	1	6008H2RS	14250	9220	10	12	RJ
40	80	18	1.1	6208H2RS	24730	14330	8.3	10	RJ
45	75	16	1	6009H2RS	15150	9660	9.2	11	RJ
45	85	19	1.1	6209H2RS	27790	16300	7.7	9.2	RJ
50	80	16	1	6010H2RS	18510	13260	8.4	9.9	RJ
50	90	20	1.1	6210H2RS	29800	18610	7.1	8.5	RJ

*Bearings also available with Carbon Chrome material: without H suffix Bearings also available with single shield or seal: suffix Z, RS, RU or TS

ABIS Miniature And Precision 2RU Seal Ball Bearings

Metric Series

Bore Ø (d)	Outer Ø (D)	Flange Ø (Df)	Radius (rs – min)	2RU Seal Part No	Flange 2RU Seal Part No	Shield Width (B1)	Shield Flange Width (Bf1)	Load Rating Cr(N)	Load Rating Cor(N)	Max Speed Grease (x1000 rpm)	Max Speed Oil (x1000 rpm)	Cage Type
3	10	11.5	0.15	6232RU	F6232RU	4	1	631	219	50	60	J/TW
3	13		0.2	6332RU		5		1301	488	40	48	J
4	9	10.3	0.1	6842RU	F6842RU	4	1	641	227	53	63	W/J/TW
4	10	11.2*	0.2	MR1042RU	MF1042RU	4	0.8	711	272	48	56	J
4	11	12.5	0.15	6942RU	F6942RU	4	1	957	350	48	56	J
4	12	13.5	0.2	6042RU	F6042RU	4	1	957	350	48	56	J
4	13	15	0.2	6242RU	F6242RU	5	1	1301	488	40	48	J
4	16	18	0.3	6342RU	F6342RU	5	1	1340	523	36	43	J
5	10	11.2*	0.15	MR1052RU	MF1052RU	4	0.8	431	169	50	60	W
5	11	12.6	0.15	MR1152RU	MF1152RU	4	0.8	716	282	45	53	J
5	11	12.5	0.15	6852RU	F6852RU	5	1	716	282	45	53	J/TW
5	13	15	0.2	6952RU	F6952RU	4	1	1077	432	43	50	J
5	14	16	0.2	6052RU	F6052RU	5	1	1329	507	40	50	J/TW
5	16	18	0.3	6252RU	F6252RU	5	1	1729	675	36	43	J/TW
5	19	22	0.3	635-2RU	F6352RU	6	1.5	2336	896	32	40	J/TW
6	12	13.2*	0.15	MR1262RU	MF1262RU	4	0.8	716	295	43	50	W/J/TW
6	13	15	0.15	6862RU	F6862RU	5	1.1	1082	442	40	50	J/W
6	15	17	0.2	6962RU	F6962RU	5	1.2	1340	523	40	45	J
6	16		0.2	696A2RU		5		1340	523	40	45	J
6	17	19	0.3	6062RU	F6062RU	6	1.2	2263	846	38	45	J
6	19	22	0.3	6262RU	F6262RU	6	1.5	2336	896	32	40	J/TW
6	22		0.3	6362RU		7		3333	1423	30	36	J/TW
7	14	16	0.15	6872RU	F6872RU	5	1.1	1173	513	40	50	J
7	17	19	0.3	6972RU	F6972RU	5	1.2	1605	719	36	43	J
7	19	22	0.3	6072RU	F6072RU	6	1.5	2336	896	36	43	J/TW
7	22	25	0.3	6272RU	F6272RU	7	1.5	3287	1379	30	36	J/TW
7	26		0.3	6372RU		9		4563	1983	28	34	J
8	14	15.6	0.2	MR1482RU	MF1482RU	4	0.8	817	386	38	45	J
8	16	18	0.2	6882RU	F6882RU	5	1.1	1252	592	36	43	J/TW
8	19	22	0.3	6982RU	F6982RU	6	1.5	2237	917	36	43	J
8	22	25	0.3	6082RU	F6082RU	7	1.5	3293	1379	34	40	J/TW
8	24		0.3	6282RU		8		3333	1423	28	34	J
8	28		0.3	6382RU		9		4563	1983	28	34	J
9	17	19	0.2	6892RU	F6892RU	5	1.1	1327	668	36	43	J
9	20	23	0.3	6992RU	F6992RU	6	1.5	2467	1081	34	40	J
9	24	27	0.3	6092RU	F6092RU	7	1.5	3356	1444	32	38	J
9	26		0.60⁽⁵⁾	6292RU		8		4563	1983	28	34	J
9	30		0.6	6392RU		10		4659	2080	24	30	J

Notes

* This dimension is increased by 0.4mm for shielded or seal version
Ball bearing assemblies also available with stainless materials: suffix S or H
Bearing also available with single shield or seal: suffix Z, RS, RU or TS
TTS⁽⁴⁾ uses smaller ball, load rating is lower than standard
Value ⁽⁵⁾ is not based up upon JIS B 1521

2RU Seal Ball Bearings

Inch series

Bore Ø (d)	Outer Ø (D)	Flange Ø (Df)	Radius (rs – min)	2RU Seal Part No	Flange 2RU Seal Part No	Shield Width (B1)	Shield Flange Width (Bf1)	Load Rating Cr(N)	Load Rating Cor(N)	Max Speed Grease (x1000 rpm)	Max Speed Oil (x1000 rpm)	Cage Type
0.125	0.375	0.422	0.0059	R262RU*	FR262RU*	0.1406	0.031	640	227	53	63	J
0.125	0.375	0.44	0.0118	R22RS*	FR22RU*	0.1562	0.03	631	219	56	67	J
0.1875	0.5	0.565	0.0118	R22RU*		0.196	0.042	1301	488	43	53	J
0.1875	0.625		0.0118	R3A2RU		0.196		1480	621	38	45	J
0.25	0.5	0.547	0.0059	R1882RU*	FR1882RU*	0.1875	0.045	1082	442	40	50	J
0.25	0.625	0.69	0.0118	R42RU*	FR42RU*	0.196	0.0633	1480	621	38	45	J
0.25	0.75		0.0157	R4A2RU		0.2812		2336	896	36	43	J
0.375	0.875	0.969	0.0157	R62RU	R62RU*	0.2812	0.062	3332	1411	32	38	J
0.5	1.125	1.2252	0.0157	R82RU	FR82RU*	0.3125	0.062	5108	2413	27	32	J
0.625	1.375	1.49	0.0315	R102RU	FR102RU	0.3438	0.0687	5999	3265	21	25	RJ
0.75	1.625		0.0315	R122RU		0.4375		9384	5057	17	21	RJ/TW

Notes

*Available with inner ring width extended by 0.0156″ (0.3962mm) each side
Bearings also available with stainless materials: prefix S
Bearing also available with single shield or seal: suffix Z, RS, RU or TS

2RU Extra thin flange open ball bearings - 6700 6800 6900

Metric Series

Bore Ø (d)	Outer Ø (D)	Flange Ø (Df)	Open Width (B)	Open Flange Width (Bf)	Radius (rs – min)	2RU Seal Part No	Flange 2RU Seal Part No	Load Rating Cr(N)	Load Rating Cor(N)	Max Speed Grease (x1000 rpm)	Max Speed Oil (x 1000 rpm)
10	19	21	5	1	0.3	68002RU	F68002RU	1716	840	37	43
10	19	21	7	1.5	0.3	638002RU	F638002RU	1716	840	37	43
10	22	25	6	1.5	0.3	69002RU	F69002RU	2695	1273	34	41
12	21	23	5	1.1	0.3	68012RU	F68012RU	1915	1041	33	39
12	21	23	7	1.5	0.3	638012RU	F638012RU	1915	1041	33	39
12	24	26.5	6	1.5	0.3	69012RU	F69012RU	2886	1446	31	36
15	24	26	5	1.1	0.3	68022RU	F68022RU	2073	1253	28	33
15	24	26	7	1.5	0.3	638022RU	F638022RU	2073	1253	28	33
15	28	30.5	7	1.5	0.3	69022RU	F69022RU	4321	2259	26	30
17	26	28	5	1.1	0.3	68032RU	F68032RU	2233	1456	26	30
17	26	28	7	1.5	0.3	638032RU	F638032RU	2233	1456	26	30
17	30	32.5	7	1.5	0.3	69032RU	F69032RU	4588	2565	23	38
20	27	28.5	4	0.8	0.2	67042RU	F67042RU	1402	729	8.5	10
20	32	35	7	1.5	0.3	68042RU	F68042RU	4015	2462	21	25
20	32	35	10	2	0.3	638042RU	F638042RU	4015	2462	21	25
20	37	40	9	2	0.3	69042RU	F69042RU	6381	3682	19	23
25	37	40	7	1.5	0.3	68052RU	F68052RU	4303	2932	18	21
25	37	40	10	2	0.3	638052RU	F638052RU	4303	2932	18	21
25	42	45	9	2	0.3	69052RU	F69052RU	7001	4540	16	19
30	37	39	4	1	0.2	67062RU	F67062RU	1143	947	5.5	7
30	42	45	7	1.5	0.3	68062RU	F68062RU	4538	3402	15	18
30	42	45	10	2	0.3	638062RU	F638062RU	4538	3402	15	18
30	47	50	9	2	0.3	69062RU	F69062RU	7242	5003	14	17
35	47	50	7	1.5	0.3	68072RU	F68072RU	4729	3821	13	16
35	55	58	10	2.5	0.6	69072RU	F69072RU	10900	7818	12	14
40	52	55	7	1.5	0.3	68082RU	F68082RU	4923	4178	12	14
40	62	65	12	2.5	0.6	69082RU	F69082RU	13678	9968	11	13
45	58	61	7	1.5	0.3	68092RU	F68092RU	6187	5381	11	13
45	68	71	12	2.5	0.6	69092RU	F69092RU	14100	10830	9.7	11
50	65	68	7	1.5	0.3	68102RU	F68102RU	6610	6090	9.6	11
50	72	75	12	2.5	0.6	69102RU	F69102RU	14540	11710	9	11
55	72		9		0.3	68112RU		8800	8100	8.7	10
80	100		10		0.6	68162RU		12700	13300	12.7	13.3

LARGE SIZE STAINLESS STEEL 2RU BALL BEARINGS 6000H 6200H 6300H

Metric series

Bore Ø (d)	Outer Ø (D)	Open Width (B)	Radius (rs – min)	2RU Seal Part No	Load Rating Cr(N)	Load Rating Cor(N)	Max Speed Grease (x1000 rpm)	Max Speed Oil (x1000 rpm)	Cage Type
10	26	8	0.3	6000H2RU*	3860	1570	31	36	J
10	30	9	0.6	6200H2RU*	4340	1920	24	29	RJ/TW
10	35	11	0.6	6300H2RU	6870	2750	22	27	RJ
12	28	8	0.3	6001H2RU*	4340	1910	27	32	J/TW
12	32	10	0.6	6201H2RU	5770	2450	22	27	RJ/TW
12	37	12	1	6301H2RU	8240	3360	20	25	RJ
15	32	9	0.3	6002H2RU*	4750	2270	23	27	RJ/TW
15	35	11	0.6	6202H2RU	6490	3000	20	24	RJ/TW
15	42	13	1	6302H2RU	9710	4370	17	20	RJ
17	35	10	0.3	6003H2RU	5090	2630	21	25	RJ/TW
17	40	12	0.6	6203H2RU	8130	3850	17	21	RJ/TW
17	47	14	1	6303H2RU	11550	5330	15	18	RJ
20	42	12	0.6	6004H2RU	7960	4050	17	21	RJ/TW
20	47	14	1	6204H2RU	10910	5360	15	17	RJ/TW
20	52	15	1.1	6304H2RU	13490	6310	14	17	RJ
25	47	12	0.6	6005H2RU	8550	4690	15	18	RJ/TW
25	52	15	1	6205H2RU	11900	7390	13	15	RJ/TW
25	62	17	1.1	6305H2RU	17490	9060	11	13	RJ
30	55	13	1	6006H2RU	11240	6610	13	15	RJ/TW
30	62	16	1	6206H2RU	16530	9080	11	13	RJ/TW
30	72	19	1.1	6306H2RU	22630	12080	9.6	12	RJ
35	62	14	1	6007H2RU	13560	8250	11	13	RJ
35	72	17	1.1	6207H2RU	21810	12360	9.2	11	RJ
35	80	21	1.5	6307H2RU	28290	15270	8.5	10	RJ
40	68	15	1	6008H2RU	14250	9220	10	12	RJ
40	80	18	1.1	6208H2RU	24730	14330	8.3	10	RJ
45	75	16	1	6009H2RU	15150	9660	9.2	11	RJ
45	85	19	1.1	6209H2RU	27790	16300	7.7	9.2	RJ
50	80	16	1	6010H2RU	18510	13260	8.4	9.9	RJ
50	90	20	1.1	6210H2RU	29800	18610	7.1	8.5	RJ

* Bearings also available with Carbon Chrome material: without H suffix Bearings also available with single shield or seal: suffix Z, RS, RU or TS

THRUST SERIES F WITHOUT RACEWAY BALL BEARINGS

Metric series

Bearing Ref	Inner Ring Bore Ø	Outer Ring Bore Ø	Inner Ring Bore Ø	Inner Ring Bore Ø	Radius	Height	Load Rating		Cage Type
	d	D	d₁	D₁	r_s (min)	H	Load Rating
	mm	mm	mm	mm	mm	mm	Ca(N)	Coa(N)
F2-6	2	6	2	6	0.10	3	117	83	TD
F2X-7	2.5	7	2.5	7	0.10	3.5	156	117	TD
F3-8	3	8	3	8	0.10	3.5	166	137	TD
F4-9	4	9	4	9	0.15	4	166	156	TD
F4-10	4	10	4	10	0.15	4.5	274	245	TD
F5-11	5	11	5	11	0.15	4.5	284	284	TD
F6-12	6	12	6	12	0.15	4.5	274	284	TD
F7-15	7	15	7	15	0.20	5	558	548	TD
F8-16	8	16	8	16	0.20	5	597	627	TD
F9-17	9	17	9	17	0.20	5	437	542	TD
F10-18*	10	18	10	18	0.20	5.5	617	705	TD

*Also available in stainless steel

ABIS TTS Seal Ball Bearings

Metric Series

Bore Ø (d)	Outer Ø (D)	Flange Ø (Df)	Radius (rs – min)	TTS Seal Part No	Flange TTS Seal Part No	Shield Width (B1)	Shield Flange Width (Bf1)	Load Rating Cr(N)	Load Rating Cor(N)	Max Speed Grease (x1000 rpm)	Max Speed Oil (x1000 rpm)	Cage Type
2	6	7.5	0.15	692TTS	F692TTS	3	0.8	330	99	75	90	W/J/TW
2	7	8.2	0.15	MR72TTS	MF72TTS	3	0.6	386	129	63	75	W
2	7	8.5	0.15	602TTS	F602TTS	3.5	0.9	386	129	60	71	W
2.5	7	8.5	0.15	692TTS	F692TTS	3.5	0.9	386	129	63	75	W
3	7	8.1	0.1	683TTS	F683TTS	3	0.8	311	112	63	75	W
4	9	10.3	0.1	684TTS	F684TTS	4	1	641	227	53	63	W/J/TW
4	16	18	0.3	634TTS	F634TTS	5	1	1340	523	36	43	J
5	8	9.2	0.1	MF85TTS	MR85TTS	2.5	0.6	218	90	53	63	W
5	9	10.2	0.15	MR95TTZ	MF95TTS	3	0.6	431	169	50	60	W
5	13	15	0.2	695TTS⁽⁴⁾	F695TTS⁽⁴⁾	4	1	1077	432	43	50	J
5	16	18	0.3	625TTS	F625TTS	5	1	1729	675	36	43	J/TW
6	10	11.2	0.15	MR106TTS⁽⁴⁾	MF106TTS⁽⁴⁾
6	12	13.2*	0.2	MR126TTS⁽⁴⁾	MF126TTS⁽⁴⁾	4	0.8	716	295	43	50	W/J/TW
6	13	15	0.15	686TTS	F686TTS	5	1.1	1082	442	40	50	J/TW
6	15	17	0.2	696TTS	F696TTS	5	1.2	1340	523	40	45	J
6	19	22	0.3	626TTS⁽⁴⁾	F626TTS⁽⁴⁾	6	1.5	2336	896	32	40	J/TW
7	11	12.2	0.15	MR117TTS	MF117TTS	3	0.6	455	202	43	50	W
7	13	14.2*	0.2	MF137TTS	MF137TTZ	4	0.8	541	276	40	48	W
7	14	16	0.15	687TTS	F687TTS	5	1.1	1173	513	40	50	J
7	19	22	0.3	607TTS⁽⁴⁾	F607TTS⁽⁴⁾	6	1.5	2336	896	36	43	J/TW
7	22	25	0.3	627TTS	F627TTS	7	1.5	3287	1379	30	36	J/TW
7	26		0.3	637TTS		9		4563	1983	28	34	J
8	12	13.2*	0.15	MR128TTS	MF128TTS	3.5	0.8	543	274	40	48	W
8	16	18	0.2	688TTS	F688TTS	5	1.1	1252	592	36	43	J/TW
8	22	25	0.3	608TTS	F608TTS	7	1.5	3293	1379	34	40	J/TW
9	14	15.5	0.1	679TTS	F679TTS	4.5	0.8	919	468	36	42	J

Notes

*This dimension is increased by 0.4mm for shielded or seal version
Bearings also available with stainless materials: suffix S or H
Bearing also available with single shield or seal: suffix Z, RS, RU or TS
TTS⁽⁴⁾ uses smaller ball, load rating is lower than standard
Value⁽⁵⁾ is not based up upon JIS B 1521

TTS SEAL ball bearings

Inch series

Bore Ø (d)	Outer Ø (D)	Flange Ø (Df)	Radius (rs – min)	TTS Seal Part No	Flange TTS Seal Part No	Shield Width (B1)	Shield Flange Width (Bf1)	Load Rating Cr(N)	Load Rating Cor(N)	Max Speed Grease (x1000 rpm)	Max Speed Oil (x1000 rpm)	Cage Type
0.0781	0.25	0.296	0.0039	R1-4TTS*	FR1-4TTS*	0.1406	0.031	284	96	67	80	W
0.0937	0.3125	0.359	0.0059	R1-5TTS*	FR1-5TTS*	0.1406	0.031	552	176	60	71	W
0.125	0.25	0.296	0.0039	R144JTTS*	FR144TTS*	0.1094	0.031	311	110	67	80	J
0.125	0.25	0.296	0.0039	R144TTS*	FR144TTS*	0.1094	0.031	284	96	67	80	W
0.125	0.3125	0.359	0.0039	R2-5TTS*	FR2-5TTS*	0.1406	0.031	558	180	60	67	W/J
0.125	0.375	0.422	0.0059	R2-6TTS*	FR2-6TTS*	0.1406	0.031	640	227	53	63	J
0.1875	0.3125	0.359	0.0039	R156TTS*	FR156TTS*	0.125	0.036	359	150	53	63	W
0.1875	0.375	0.422	0.0039	R166TTS*	FR166TTS*	0.125	0.031	709	272	50	60	J
0.1875	0.5	0.565	0.0118	R2TTS*		0.196	0.042	1301	488	43	53	J
0.25	0.375	0.422	0.0039	R168TTS*	FR168TTS*	0.125	0.036	373	172	48	56	W
0.25	0.5	0.547	0.0059	R188TTS*	FR188TTS*	0.1875	0.045	1082	442	40	50	J
0.25	0.625	0.69	0.0118	R4TTS*	FR4TTS*	0.196	0.0633	1480	621	38	45	J
0.3125	0.5	0.547	0.0059	R1810TTS*	FR1810TTS*	0.1562	0.031	542	276	40	48	W
0.375	0.875	0.969	0.0157	R6TTS	FR6TTS**	0.2812	0.062	3332	1411	32	38	J
0.5	1.125	1.2252	0.0157	R8TTS	FR8TTS**	0.3125	0.062	5108	2413	27	32	J

Extra Thin TTS Ball Bearings - 6700 6800 6900

Metric Series

Bore Ø (d)	Outer Ø (D)	Flange Ø (Df)	Open Width (B)	Open Flange Width (Bf)	Radius (rs – min)	TTS Seal Part No	Flange TTS Seal Part No	Load Rating Cr(N)	Load Rating Cor(N)	Max Speed Grease (x1000 rpm)	Max Speed Oil (x1000 rpm)
10	15	16.5	3	0.8	0.15	6700TTS		855	435	15	17
12	18	19.5	4	0.8	0.2	6701TTS	F6701TTS	926	530	13	15
15	21	22.5	4	0.8	0.2	6702TTS	F6702TTS	937	582	11	13
17	23	24.5	4	0.8	0.2	6702TTS	F6703TTS	1000	658	9.5	11
20	27	28.5	4	0.8	0.2	6704TTS	F6704TTS	1402	729	8.5	10

Large Size Stainless Steel TTS Seal Ball Bearings 6000H 6200H 6300H

Metric series

Bore Ø (d)	Outer Ø (D)	Open Width (B)	Radius (rs – min)	TTS Seal Part No	Load Rating Cr(N)	Load Rating Cor(N)	Max Speed Grease (x1000 rpm)	Max Speed Oil (x1000 rpm)	Cage Type
10	26	8	0.3	6000HTTS*	3860	1570	31	36	J
12	28	8	0.3	6001HTTS*	4340	1910	27	32	J/TW

* Bearings also available with Carbon Chrome material: without H suffix Bearings also available with single shield or seal: suffix Z, RS, RU or TS

Extra Thin TTS Seal Ball Bearings - ET

Metric series

Bore Ø (d)	Outer Ø (D)	Open Width (B)	Shield/ Seal Width (B1)	Radius (rs – min)	TTS Seal Part No	Load Rating Cr(N)	Load Rating Cor(N)	Max Speed Grease (x1000 rpm)	Max Speed Oil (x1000 rpm)	Cage Type
16	23	4.5	4.5	0.15	ET2316TTS	968	619	20	24	W
20	25	4	4	0.15	ET2520TTS	1011	691	17	20	W

Notes Bearings also available with single shield or seal: suffix ZS or TS Bearings also available with stainless material: suffix S

Extra Thin TTS Seal Ball Bearings - ER

Inch

Bore Ø (d)	Outer Ø (D)	Open Width (B)	Shield/ Seal Width (B1)	Radius (rs – min)	ZZ Shield Part No	Load Rating Cr(N)	Load Rating Cor(N)	Max Speed Grease (x1000 rpm)	Max Speed Oil (x1000 rpm)	Cage Type
0.3750	0.6250	0.1562	0.1562	0.0098	ER1038	856	435	30	35	W
0.5000	0.7500	0.1562	0.1562	0.0098	ER1212	918	542	24	28	W
0.6250	0.8750	0.1562	0.1562	0.0098	ER1458	968	619	20	24	W
0.7500	1.0000	0.1562	0.1562	0.0098	ER1634	1011	691	17	20	W

Notes

Bearings also available with single shield or seal: suffix ZS or TS
Bearings also available with stainless material: suffix S

ABIS: Precision Bearings by IEC

ABIS Precision Bearings: Delivered with IEC Expertise

A Legacy of Excellence and Innovation

Your Trusted UK Source for ABIS Bearings

ABIS Catalogue

ABIS Miniature Precision Bearings

ABIS Miniature Precision Bearings

Available Ball Bearings

Available Ball Bearings

ACCESSORIES - Shaft Retaining Rings

ACCESSORIES - shaft retaining rings

ACCESSORIES - shims and spring washers

ABIS Preload Springs For ball bearings

Benefits of ABIS Bearing Preload Springs

ABIS Bearing Lock Nuts Introduction

Abis Size Range and Ordering Information (Unit: mm)

Abis Miniature Ball Bearings Structure

Basic rules for selection & handling of bearings

Design & characteristics of radial ball bearings

Installation

ABIS Lubricants

Lubricating - oil & grease

Grease filling VOLUME

ABIS Bearings Criteria for Lubricating Oil Selection

Common oil brands

Common Grease Brands

BALL BEARING TECHNICAL DATA

ABIS Miniature Ball Bearing Materials

ABIS Miniature Bearing Noise Testing

Noise Testing

Abis Bearings RETAINER Cages

Closures

ABIS Bearings Radial Play

ABIS Bearings Internal clearance

Importance of correct fitting of bearings

Faults, Causes & Remedies

ABIS BEaring Tolerances

Bearings with bore sizes 0-0.375 inches, 0-18mm. Outside diameters 0-30mm

Table 2 Bearings with bore sizes 20-34mm. Outside diameter 31-80mm.

Open Ball Bearings

Open ball bearings

Extra thin open ball bearings - 6700 6800 6900

LARGE SIZE STAINLESS STEEL OPEN BALL BEARINGS 6000H 6200H 6300H

EXTRA THIN OPEN BALL BEARINGS - ET, ER

Abis Flange Open Ball Bearings

Metric Series

Flange open ball bearings

Extra thin flange open ball bearings - 6700 6800 6900

Shield ball bearings inch

Extra thin shield ball bearings - 6700 6800 6900

Thrust Series FM With Raceway Ball Bearings

ABIS flange shield ball bearings

Flange shield ball bearings

Extra thin flange open ball bearings - 6700 6800 6900

ABIS 2RS Seal Ball Bearings

ABIS 2RS Seal Ball Bearings

Extra Thin 2RS Seal Ball Bearings - 6700 6800 6900

Large Size Stainless Steel 2RS Seal Ball Bearings 6000H 6200H 6300H

ABIS Miniature And Precision 2RU Seal Ball Bearings

2RU Seal Ball Bearings

2RU Extra thin flange open ball bearings - 6700 6800 6900

LARGE SIZE STAINLESS STEEL 2RU BALL BEARINGS 6000H 6200H 6300H

THRUST SERIES F WITHOUT RACEWAY BALL BEARINGS

ABIS TTS Seal Ball Bearings

TTS SEAL ball bearings

Extra Thin TTS Ball Bearings - 6700 6800 6900

Large Size Stainless Steel TTS Seal Ball Bearings 6000H 6200H 6300H

Extra Thin TTS Seal Ball Bearings - ET

Extra Thin TTS Seal Ball Bearings - ER

Grow your business, become a supplier?

Industries

Products

Industries

Subscribe

Are you a supplier? Let’s talk.

We look forward to helping you.

For Customised Solutions
